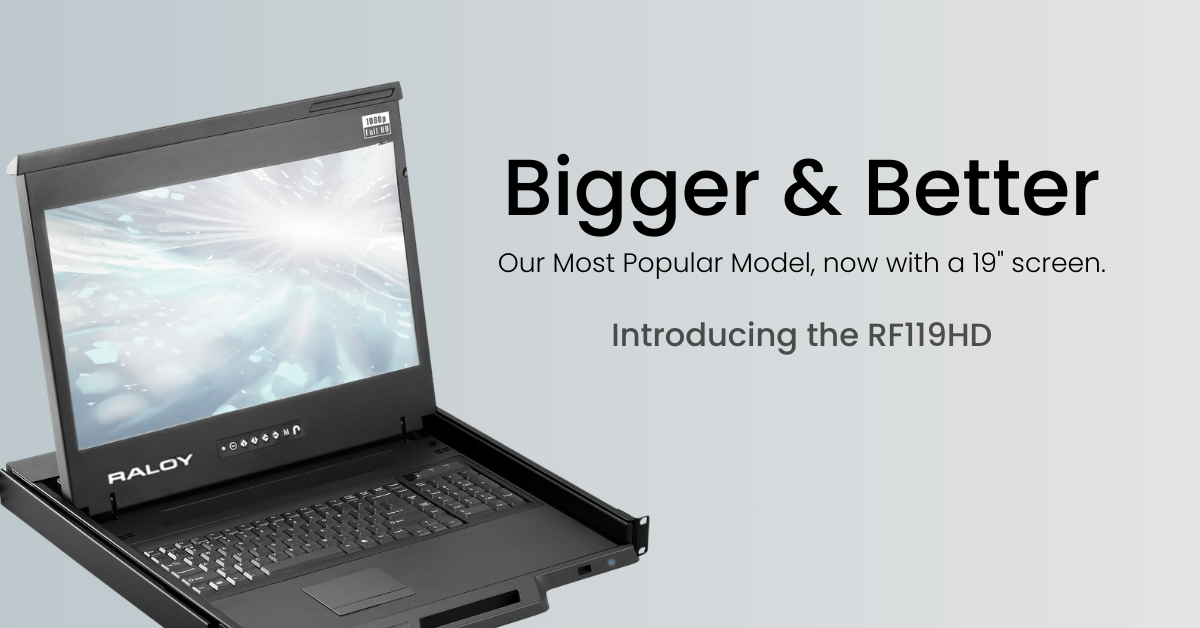

The Raloy RF119HD rack console features a 19” LED LCD capable of full HD 1080p video. This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your High-definition LED monitor, optional integrated KVM switch, Keyboard, and Mouse in one unit. Access your servers with a streamlined, highly customizable Raloy rack console drawer. Integrate a modular KVM switch to control multiple servers from a single unit.
Modular Options
- Integrated KVM switch capability – 8 to 32 Port; 1 to 4 Users
(local / extender / over-IP) - Mouse: Touchpad or Trackball
- Keyboard available in 13 languages
- Front USB hub port for device access
- Touchscreen option: Resistive 1-pt
- DC power options: 12V / 24V / 48V / 110V / 125V
- Audio Options: 2.5mm / Speaker / Composite (BNC)
- Video Options: VGA / DVI-D / HDMI (HDCP) / SDI
Features & Benefits
- Supports Full HD with 1080p resolution
- Simple to install, configure, and operate for easy, at-the-rack
access of all your rack-based servers. - Supports Windows, Linux, Mac, and other operating Systems
- Optional Picture in Picture (PIP) & Picture by Picture (PBP)
capability *-HDMI input option only - UL, cUL, CE, FCC, & CCC Certified
- PC, SUN or MAC keyboard layout, and audio support.
- Industry-leading 2 year warranty, extendable up to 5 years
Specifications
| HDMI KVM | IP | Remote | 8-port | ||
| 0 | 0 | RF119-HDMI4KKVM08 | |||
| DVI-D KVM | IP | Remote | 12-port | ||
| 0 | 0 | RF119-DVIKVM112 | |||
| Cat6 Matrix KVM | IP | Remote | 8-port | 16-port | 32-port |
| 1 | 1 | – | RF119-CATx31116 | RF119-CATx31132 | |
| 2 | 1 | – | RF119-CATx41216 | RF119-CATx41232 | |
| 0 | 1 | – | RF119-CATx21016 | RF119-CATx21032 | |
| 0 | 2 | – | RF119-CATx32016 | RF119-CATx32032 | |
| 0 | 3 | – | RF119-CATx43016 | RF119-CATx43032 | |
| Cat6 Combo KVM | IP | Remote | 8-port | 16-port | 32-port |
| 1 | 0 | RF119-CATx10108 | RF119-CATx10116 | RF119-CATx10132 | |
| 0 | 1 | RF119-CATx11008 | RF119-CATx11016 | RF119-CATx11032 | |
| 0 | 0 | RF119-CATx10008 | RF119-CATx10016 | RF119-CATx10032 | |
| DB-15 Combo KVM | IP | Remote | 8-port | 16-port | |
| 1 | 0 | RF119-KVM10108 | RF119-KVM10116 | ||
| 0 | 1 | RF119-KVM11008 | RF119-KVM11016 | ||
| 0 | 0 | RF119-KVM10008 | RF119-KVM10016 | ||
| DB-15 USB Hub KVM | IP | Remote | 8-port | ||
| 1 | 0 | RF119-HKVM10108 | |||
| 0 | 1 | RF119-HKVM11008 | |||
| 0 | 0 | RF119-HKVM10008 |
| Model | RF119HD | RF119HD with Integrated KVM |
| Product Dimensions (H x W x D) | 1.73 x 19.4 x 18.1 in ( 44 x 442 x 460 mm ) | 1.73 x 19.4 x 22.8 in ( 44 x 442 x 580 mm ) |
| Package Dimensions | 5.5 x 23.2 x 31.8 in ( 140 x 590 x 808 mm ) | 5.5 x 23.2 x 31.8 in ( 140 x 590 x 808 mm ) |
| Net Weight | 23.8 lb ( 10.8 kg) | 25.5 lb ( 11.6 kg) |
| Mounting Depth | 18.5 in. (min) to 27.6 in (max) ( 470 to 700 mm ) | 18.5 in. (min) to 31.5 in (max) ( 470 to 800 mm ) |
| LCD Panel / Video & Audio | ||
| Display Size | 19.3-inch LCD | |
| Max Resolution ( dots x lines) | 1920 x 1080 | |
| Backlight Type | LED | |
| Brightness ( nits ) | 300 | |
| Contrast Ration ( typ. ) | 1000:1 | |
| Color | 16.7 M, 8-bit | |
| Viewing Angle ( L / R / U / D ) | 85 / 85 / 85 / 85 | |
| Display Area (mm) | 381.9H x 214.8V | |
| Standard Video Input | VGA + HDMI | |
| Optional Video Input | DP, DVI-D, BNC, SDI | DP, DVI-D, BNC, SDI |
| Audio | Optional Built-in Dual Stereo Speakers 2W x 2 | |
| Power | ||
| Supply Range | Auto-sensing 100 to 240VAC, 50 / 60Hz | |
| Keyboard | ||
| Keyboard / Mouse | 104-key Notepad keyboard / Glidepoint Touchpad | |
| Keyboard Layout | Windows (standard), MAC, SUN | |
| Keyboard Languages | United States ( standard ), United Kingdom, Germany, France, Spain, Norway, Italy, Russia, Switzerland, Netherlands, Portugal, China, Japan, Korea, Arabia, Turkey | |
| Environmental Specifications | ||
| MBTF ( hrs ) | 15,000 | |
| Operation Temperature | 32 to 131°F ( 0 to 55°C ) | |
| Storage Temperature | -4 to 140°F ( -20 to 60°C ) | |
| Operating Humidity | 10~90%, non-condensing | |
