RF117HD - 17" 1080p HD
Ultra modern, sleek design with full 1080p resolution and options for native support of Mac OS.
Full 1080p Resolution

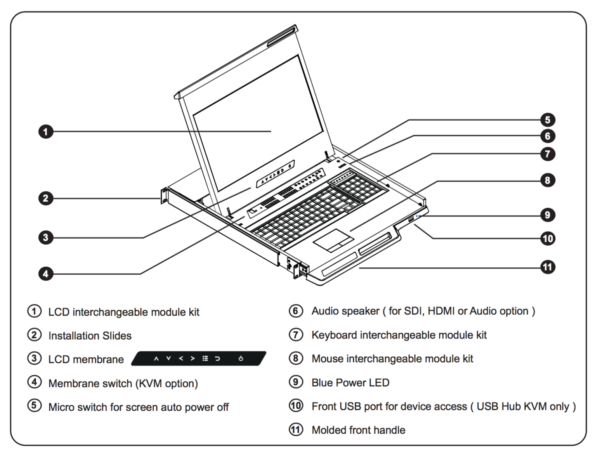

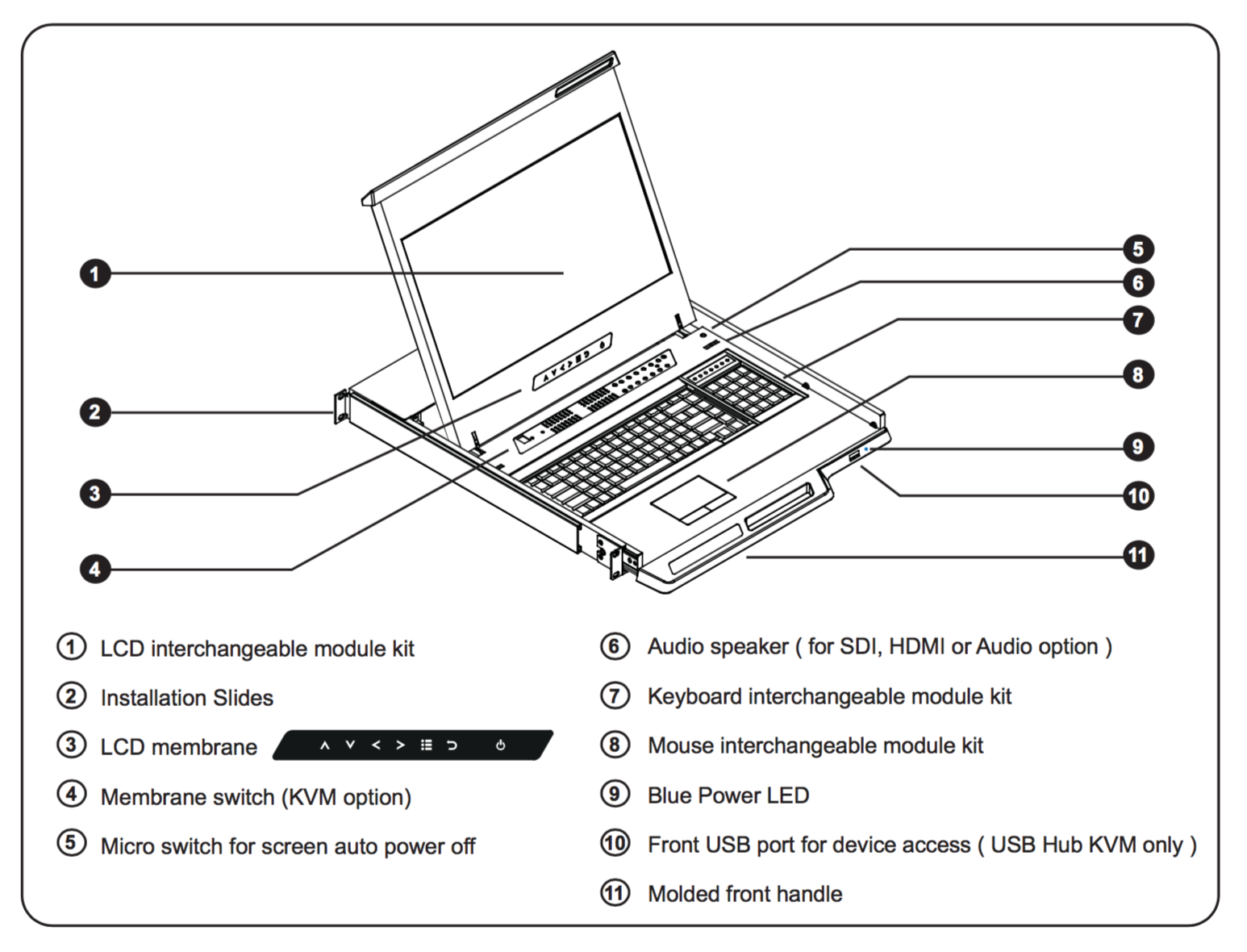

Featuring a 1080p LCD 17.3" display and 104-key notepad keyboard, with touchpad or trackball, the RF117HD includes a 6ft console cable designed specifically for Raloy devices. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the-art, modular rack console drawer.
In the Box:
- 1 x 6ft console cable
- 1 x Power cord
- 8 x M6 screw, cage nut & cup washer
Optional Upgrades may add more items to the box.

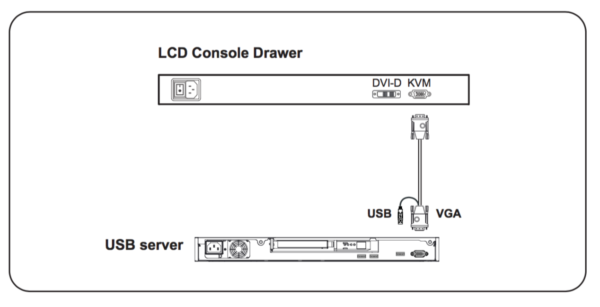

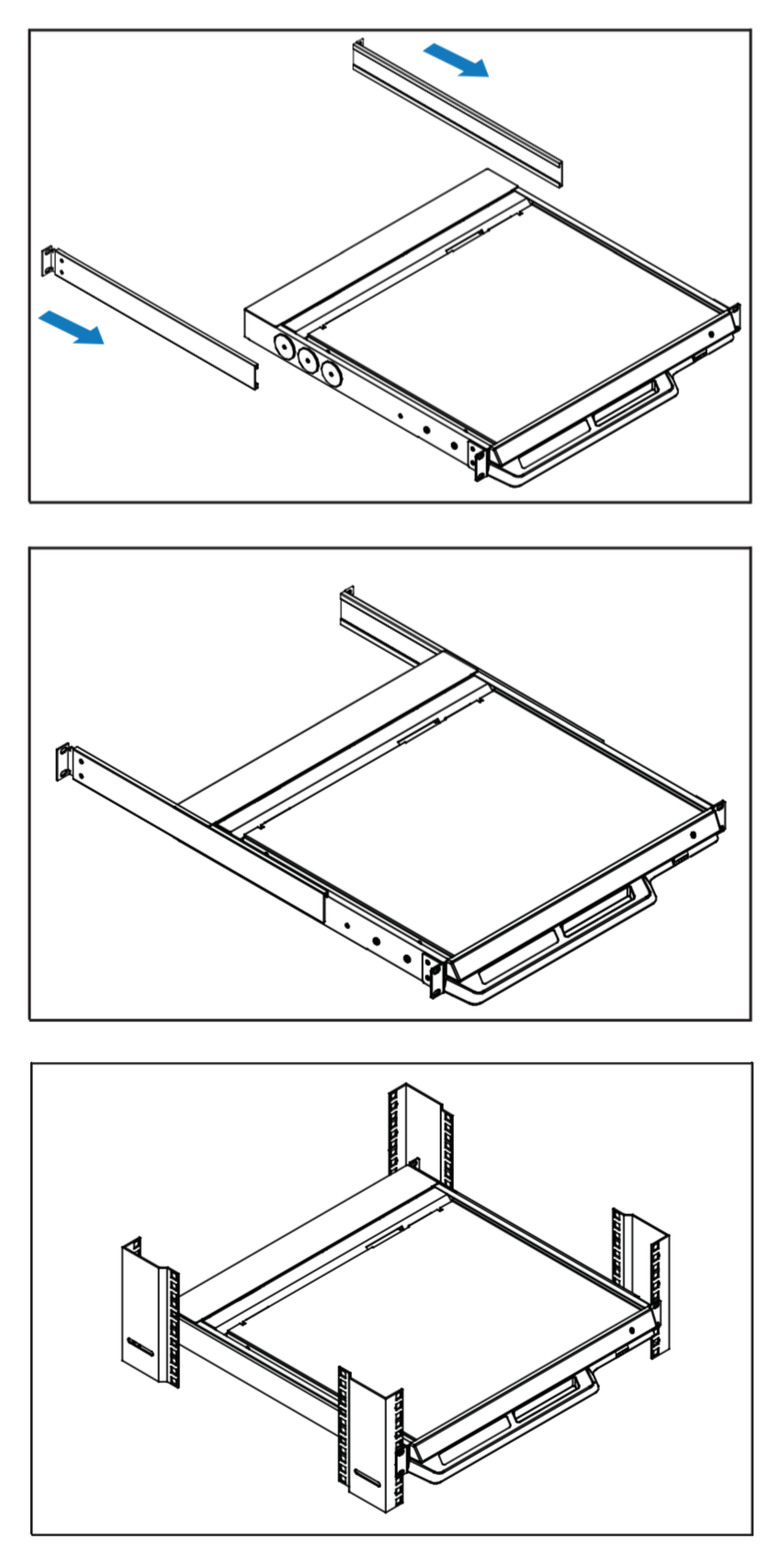

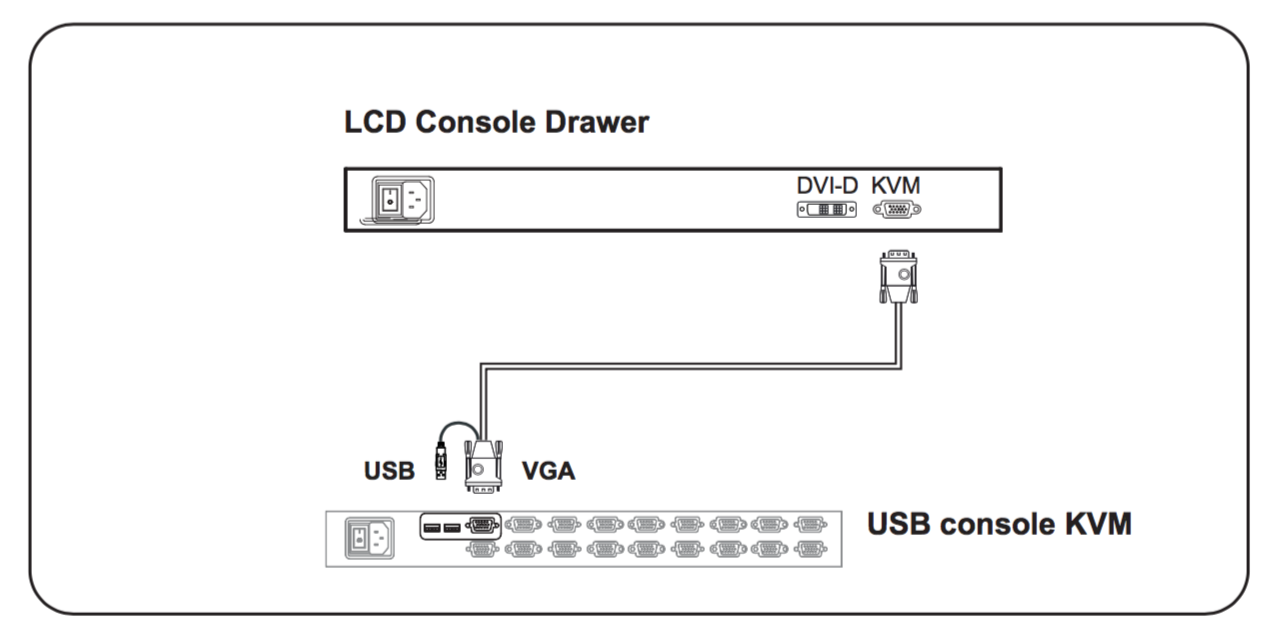

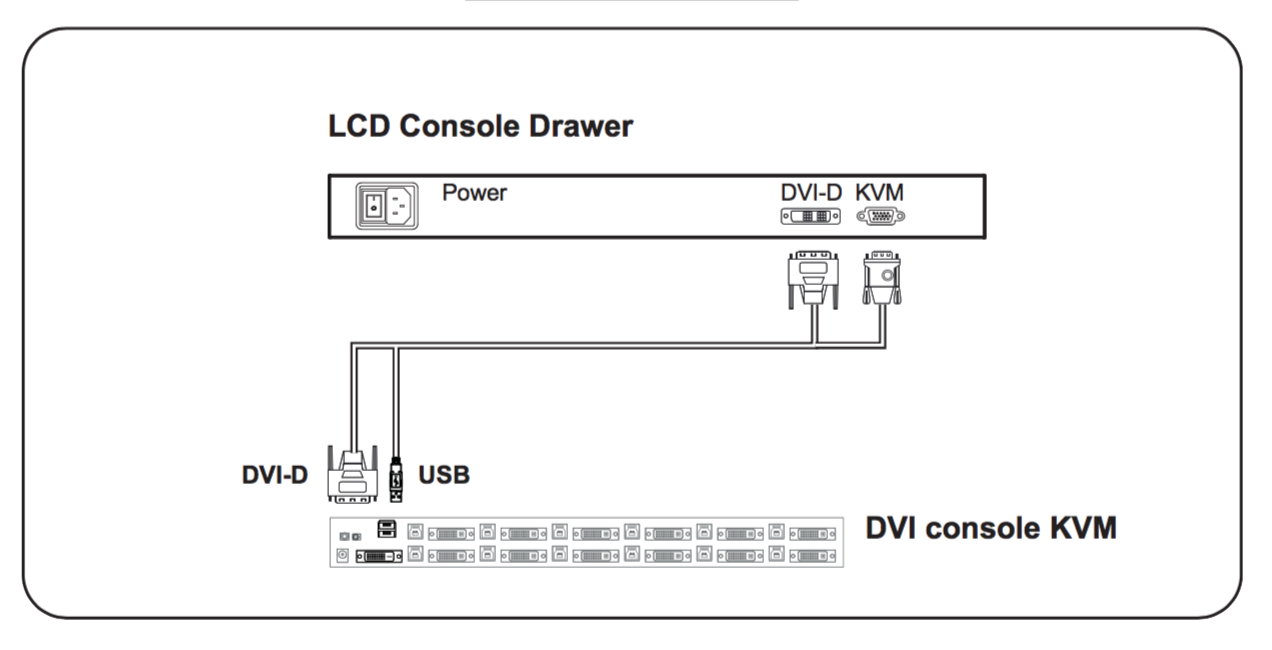

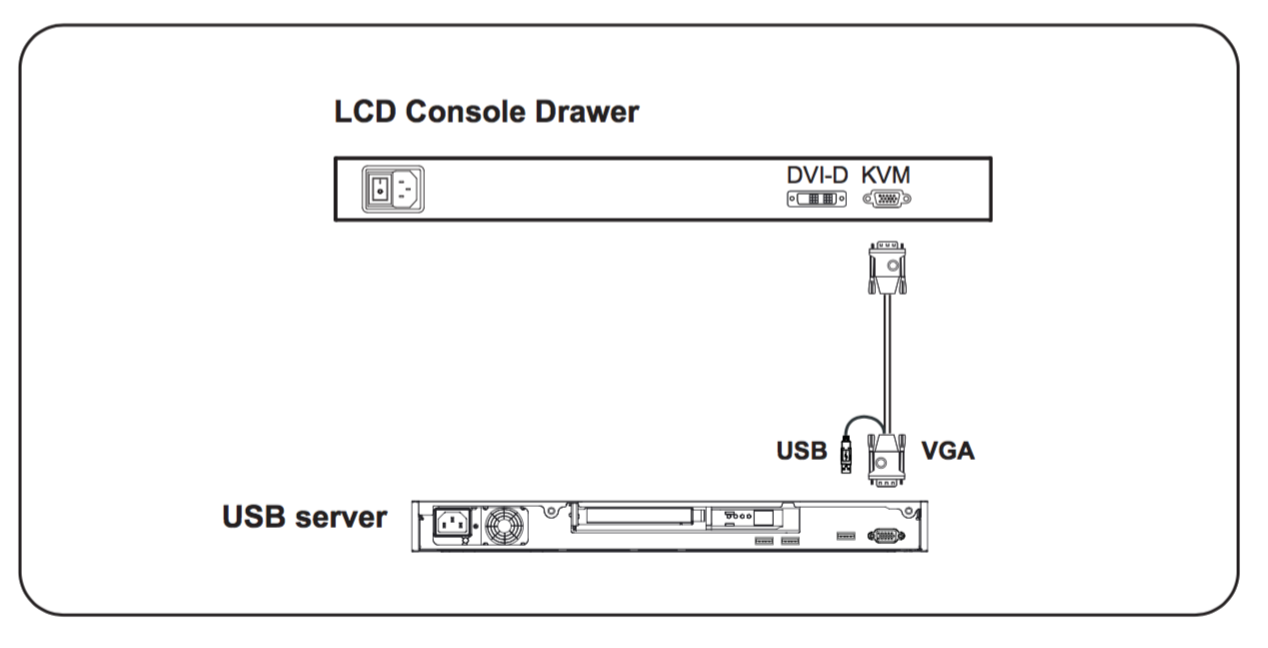

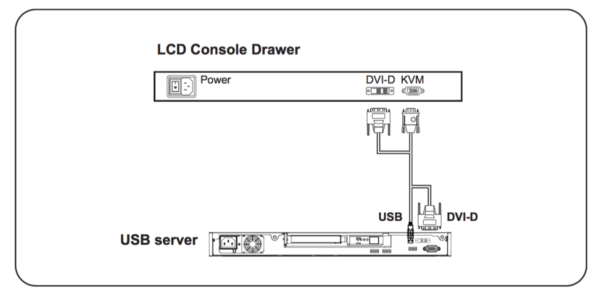

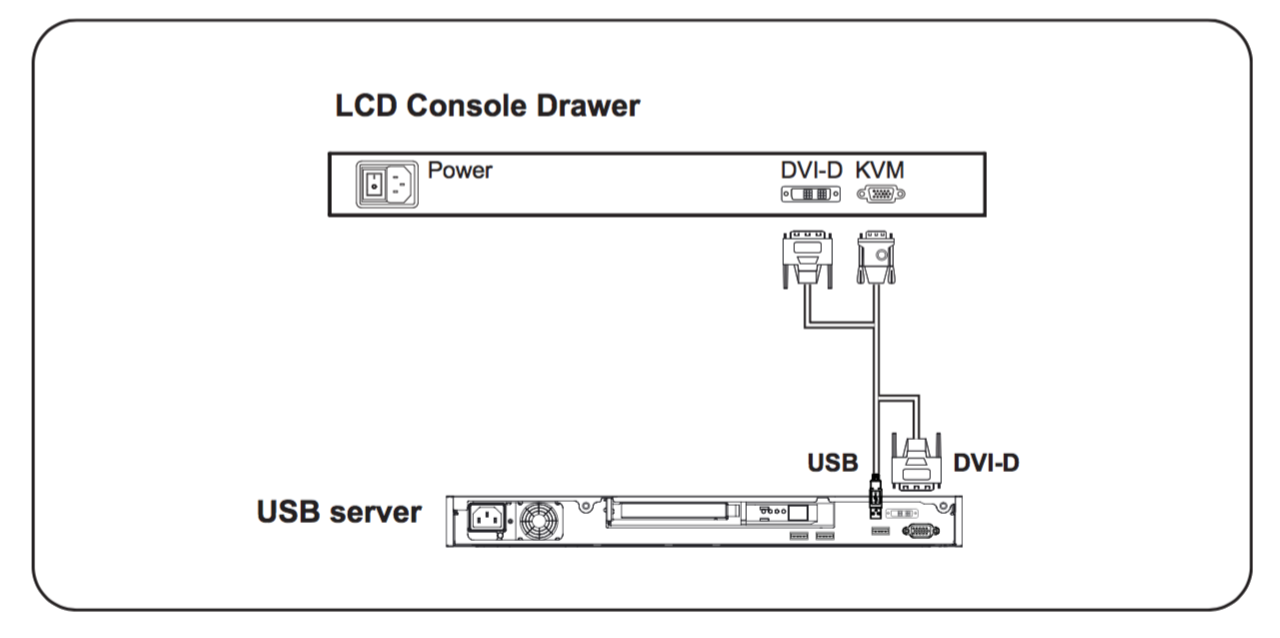

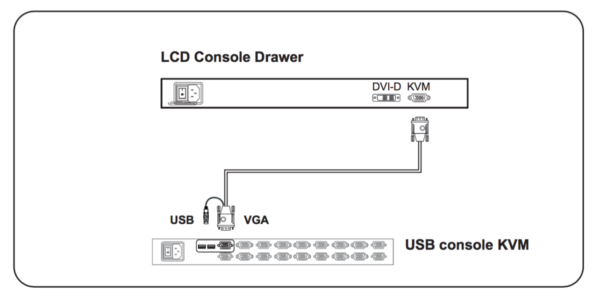

Setup is fast and easy, whether in a server cabinet or 2 or 4 post rack. Simply plug in this modular rack console with an integrated KVM and you are ready to go. To use the console, slide the rack console unit out and open the cover to reveal the widescreen monitor and built-in keyboard and mouse.
To conserve valuable rack space, close the cover and slide the console module back out of the way and into the rack when finished.
CLICK & BUY RALOY ONLINE
Purchase Raloy rack consoles and rackmount KVMs from our certified resellers.
RACK CONSOLE
| RF117HD | 17.3″ LCD Widescreen Single Rack Console & Keyboard Drawer |
| Package Contains | 1 x 6ft console cable 1 x Power cord 8 x M6 screw, cage nut & cup washer |
| Compatibility | Mix various PC, SUN, MAC, IBM, HP & DELL servers. |
REGULATIONS
| Safety | FCC & CE certified |
| Environmental | RoHS2 & REACH compliant |
| Warranty | 2 Years, extendable up to 5 years |

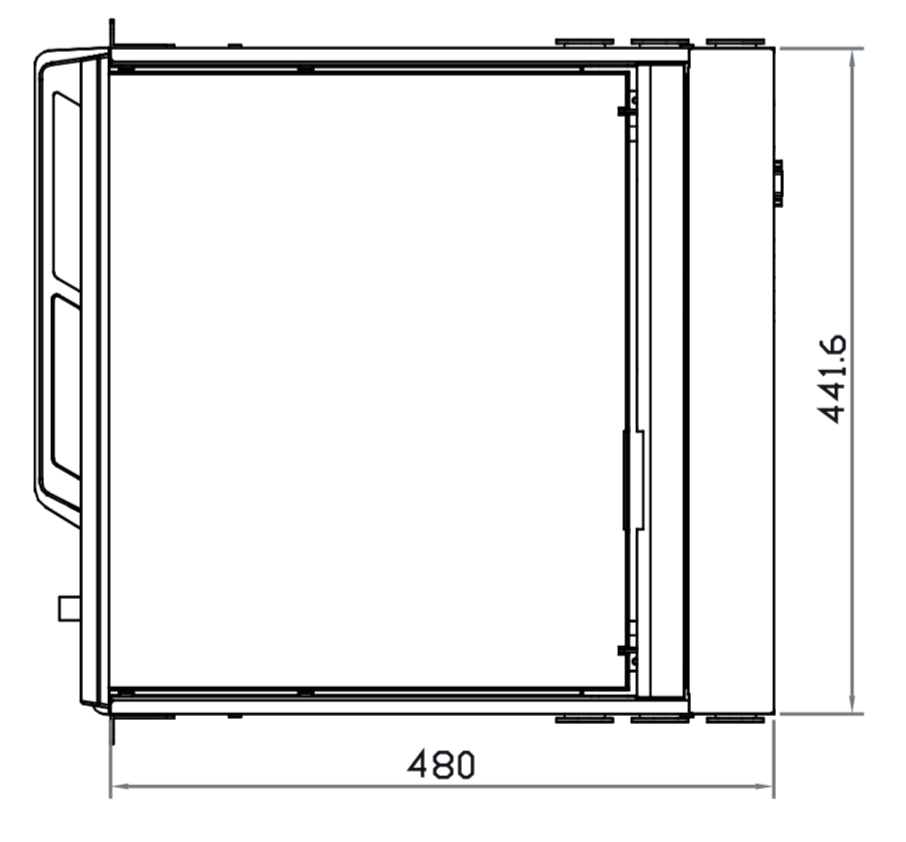

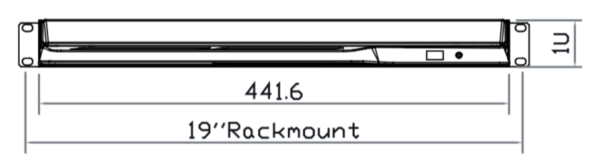

DIMENSIONS (Console Only)
| Product (W x D x H) | 17.4 x 18.9 x 1.73″ (441.6 x 480 x 44 mm) |
| Packing (W x D x H) | 23.2 x 31.8 x 5.5″ (590 x 808 x 140 mm) |
| Net Weight | 24 lbs ( 10.8 kg ) |
| Shipping Weight | 34.8 lbs ( 15.8 kg ) |
| Mounting Depth | 17.5 to 30.5″ (444.5 to 774.7 mm) |
DIMENSIONS (with Integrated KVM)
| Product (W x D x H) | 17.4 x 22.8 x 1.73″ (441.6 x 580 x 44 mm) |
| Packing (W x D x H) | 23.2 x 31.8 x 5.5″ (590 x 808 x 140 mm) |
| Net Weight | 25.5 lbs (11.6 kg) |
| Shipping Weight | 38.5 lbs (17.5 kg) |
| Mounting Depth | 25 to 34.5″ (635 to 876.3 mm) |
POWER
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption | Screen On: Max. 5W Power Saving Mode: Max. 4W Power Button On: Max. 1W |
ENVIRONMENTAL
| Operating Temperature | 32° – 131°F (0° – 55°C) |
| Storage Temperature | -4° – 140°F (-20° – 60°C) |
| Operating Humidity | 20~90%, non-condensing |
| Storage Humidity | 5~90%, non-condensing |
| Operating Altitude | 16,000 ft (4,877 meters) |
| Non-Operating Altitude | 40,000 ft (12,192 meters) |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
LCD PANEL
| Diagonal Size | 17.3″ Widescreen TFT |
| Max. Resolution | 1920 x 1080 |
| Brightness (cd/m2) | 400 |
| Backlight | LED |
| Color Support | 16.7M, 8-bit |
| Contrast Ratio (typ) | 600:1 |
| Viewing Angle (H/V) | 160 ° x 140° |
| Display Area (mm) | 382 x 215 |
| Response Time (ms) | 40 |
| MTBF (hrs) | 50,000 |
| Signal Input | VGA or DVI-D |
| Speaker (option) | 2 x Built-in Dual Stereo Speakers 2W |
Features & Benefits
- 17” Full HD 1080p monitor (1920 x 1080).
- Sun Micro and Mac keyboard support option.

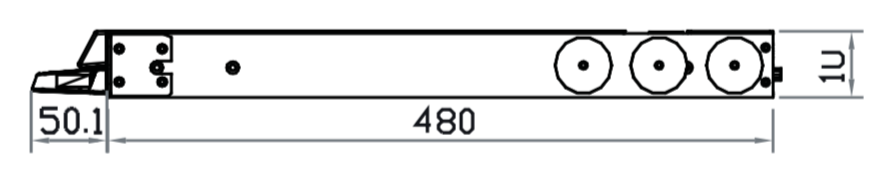

- 1U short depth design of 18.9” (480mm).

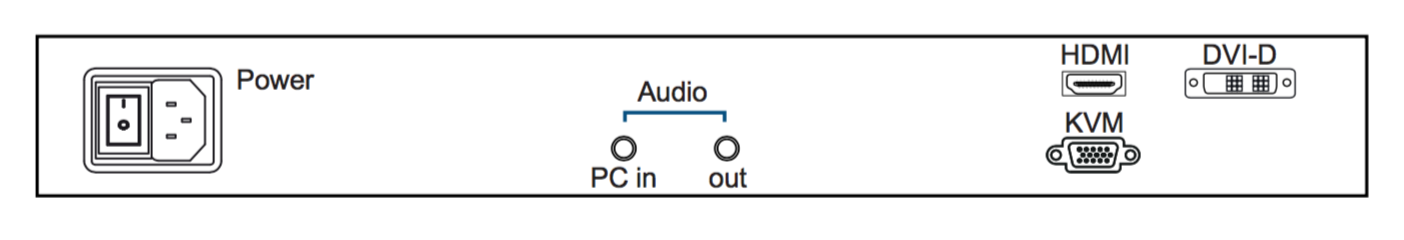

- Digital & Analog Video inputs (VGA & DVI-D).
- Options to support latest video formats: HDMI, BNC, SDI, etc.
- Multi-monitor options coming soon.
- 104-key keyboard with number pad and numerous language layouts.
- Available with touchpad or trackball options.
- 2-post rack mounting available.
WE’VE GOT YOU COVERED
We are so confident in our products, your purchase is covered by an industry-leading 2 year warranty, extendable up to 5 years.
Share your thoughts
We’re happy when you’re happy, simple as that. We want to listen to how we may improve our site for you.
Recommendations
Coming Soon! Thank you for your patience. See All Cables.
Upgrades
For broadcast-grade video and high resolution CCTV market:
- 3G / HD / SD-SDI input
- HDMI / AV / Audio
For optimized Telco or Data Center power environments:

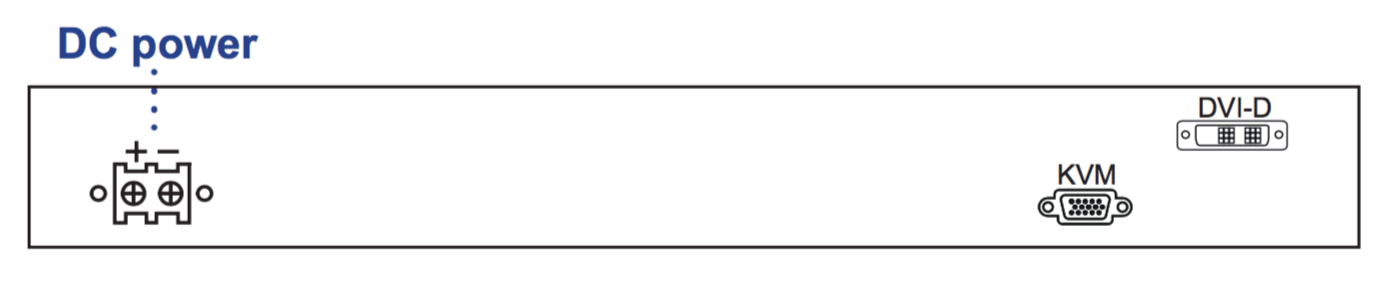

- DC Power
- Full Range KVM
Integrate it.
Dependable, integrated KVM switches for quick, efficient
at-the rack access of your critical servers.
Why Integrate?

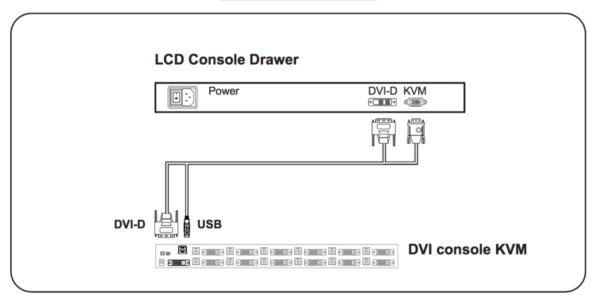

Optimize your rack space by integrating a KVM Switch into your Console Drawer, providing easy installation & streamlined access to your servers in only 1U.
✓ Innovative Design
Traditional cabled and high density designs to meet the unique requirements of each rack environment.
✓ Plug-&-Play Connectivity
Simple to install, configure, and operate for less down-time and greater productivity.
✓ Fully Customizable
Multiple port numbers and simultaneous user configurations to fulfill any access requirements.
| Simultaneous Users | Local Console | Remote Console | IP Console | 8‑Port | 16‑Port |
|---|---|---|---|---|---|
| 1 | 1 | 0 | 0 | RF117HD-KVM10008* | RF117HD-KVM10016* |
| 1 | 1 | 0 | 1 | RF117HD-KVM10108* | RF117HD-KVM10116* |
| 1 | 1 | 1 | 0 | RF117HD-KVM11008* | RF117HD-KVM11016* |
| 2 | 1 | 1 | 0 | RF117HD-KVM21016* | |
| 3 | 1 | 1 | 1 | RF117HD-KVM31116* | |
| 3 | 1 | 2 | 0 | RF117HD-KVM32016* | |
| 4 | 1 | 2 | 1 | RF117HD-KVM42116* | |
| 4 | 1 | 1 | 2 | RF117HD-KVM41216* | |
| 4 | 1 | 3 | 0 | RF117HD-KVM43016* |
| Simultaneous Users | Local Console | Remote Console | IP Console | 12‑Port |
|---|---|---|---|---|
| 1 | 1 | 0 | 0 | RF117HD-DVIKVM112* |
| Simultaneous Users | Local Console | Remote Console | IP Console | 8‑Port | 16‑Port |
|---|---|---|---|---|---|
| 1 | 1 | 0 | 0 | RF117HD-HKVM10008* | RF117HD-HKVM10016* |
| 1 | 1 | 0 | 1 | RF117HD-HKVM10108* | RF117HD-HKVM10116* |
* Replace with either an e for the touchpad or b for the trackball.
