IP-Enabled KVM Switches
is a Healthy Mixture of
Access
Access anywhere in the world, at any time.
Consolidate
Access multiple servers via single pane of glass.
HIGHLIGHTS | OPTIONS | OVERVIEW | TECH SPECS | INTEGRATE
ACROSS-THE-GLOBE Server Access
Manage your IT environment from anywhere in the world.

Global Connectivity
Secure IP remote user access across the world wide web.
Port Variety Options
8, 16, and 32-port versions

CATx-Friendly
High Density CATx styles available
Single- & Multi-User Access
Multi-user access through extended user consoles or IP connectivity.
IP-ENABLED PRODUCTS
Explore Raloy’s Mix-&-Match Opportunities.
Features
& Benefits
- Remote & secure IP access.
- Cascade switches up to 8 levels.
- Cables or dongles included.
- CATx options for up to 131 feet between servers and KVM.
- Optional extended user access up to 490 feet.
- Versatile options and flexibility:
- Single user and multi user models.
- 8, 16, or 32 ports in 1U rack space.
- DVI-USB, VGA-USB, VGA-PS/2 models.
- Multi-platform switch capability.
- Integrate with any Raloy LCD console.

TECHNICAL SPECIFICATIONS!
KVM PORTS
Number of Ports | 8, 16, or 32 |
Connection Type | DB-15 or CATx |
Connectivity | DVI-D + USB, VGA + USB, VGA + PS/2 KVM cables or DVI-D + USB, VGA + USB, VGA + PS/2 dongles. |
Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac Windows 7 / Vista / 2003 / XP, Linux, Unix |
Package Contains | 1 IP KVM, Mounting set w/ bracket & screws x 1, Power adapter w/ power cord ( for KVM ) x 1, Receiver box for remote console*, Power adapter w/ power cord (for receiver)*, RCE-6 6ft Combo KVM Cable* – May contain additional items for particular options selected |
DIMENSIONS
Product (W x D x H) | 17.4 x 6.7 x 1.73″ / 443 x 171 x 44 mm |
Packing (W x D x H) | 19.7 x 15.7 x 3.5″ / 500 x 400 x 90 mm |
Net Weight | 6.5 lbs / 3 kg |
Shipping Weight | 11 lbs / 5 kg |
POWER
Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
Consumption | Max. 48 Watt, Standby 5 Watt |
Optional DC | 12V, 24V or 48V DC inputs |
ENVIRONMENTAL
Operating | 32° – 122°F (0° – 50°C) |
Storage | 23° – 140°F (-5° – 60°C) |
Relative Humidity | 5~90%, non-condensing |
Shock | 50G peak acceleration (11ms, half-sine wave) |
Vibration | 58~100Hz / 0.98G (11ms / cycle) |
REGULATIONS
Regulatory Approval | cUL, FCC & CE certified, RoHS2 & REACH compliant |
Warranty | 2 Years |
LOCAL CONSOLE
Video Connection | 1 x DB-15 VGA |
Resolution Supported | Up to 1600 x 1200 |
Input Device Type | 2 x USB type A for keyboard & mouse |
IP CONSOLE
Connector | RJ45 Ethernet |
User Management | 15-user login, 1 x active user |
Network Protocol | DHCP / BOOTP / DNS |
Security | SSL v3, RSA, AES, HTTP / HTTPs, CSR |
Resolution | Up to 1600 x 1200 |
Browser Compatibility | IE, Firefox, Safari, Netscape |
EXTENDED CONSOLE*
Video Connection | 1 x DB-15 VGA |
Resolution Supported | Up to 1600 x 1200 |
Input Device Type | 2 x USB type A for keyboard & mouse |
Remote I/O | RJ45 via Cat5 / Cat5e / Cat6 cable up to 150m |
Compensation | Auto adjust for cable length |
* Available on certain models only.
IP-ENABLED PRODUCT MATRIX!
Connector Type | Simultaneous Users | Local Console | Extended Console | IP Console | 8 Port | 16 Port | 32 Port |
---|---|---|---|---|---|---|---|
CATx | 1 | 1 | 0 | 1 | CATx10108 | CATx10116 | CATx10132 |
CATx | 3 | 1 | 1 | 1 | - - | CATx31116 | CATx31132 |
CATx | 4 | 1 | 1 | 2 | - - | CATx41216 | CATx41232 |
DB-15 | 1 | 1 | 0 | 1 | KVM10108 | KVM10116 | - - |
DB-15 | 3 | 1 | 1 | 1 | KVM31108 | KVM31116 | - - |
DB-15 | 4 | 1 | 1 | 2 | KVM41208 | KVM41216 | - - |
DB-15 | 4 | 1 | 2 | 1 | KVM42108 | KVM42116 | - - |
USB Hub | 1 | 1 | 0 | 1 | HKVM11008 | HKVM10116 | - - |
Versatile & Flexible Options
All Raloy KVM Switches are available as standalone KVM switches or may be incorporated with any Raloy LCD console.
Globally Enabled
Secure IP remote user access across the world wide web.
Simultaneous Control
Efficient system management with optional simultaneous user access in 1U.

Reach Greater Distances

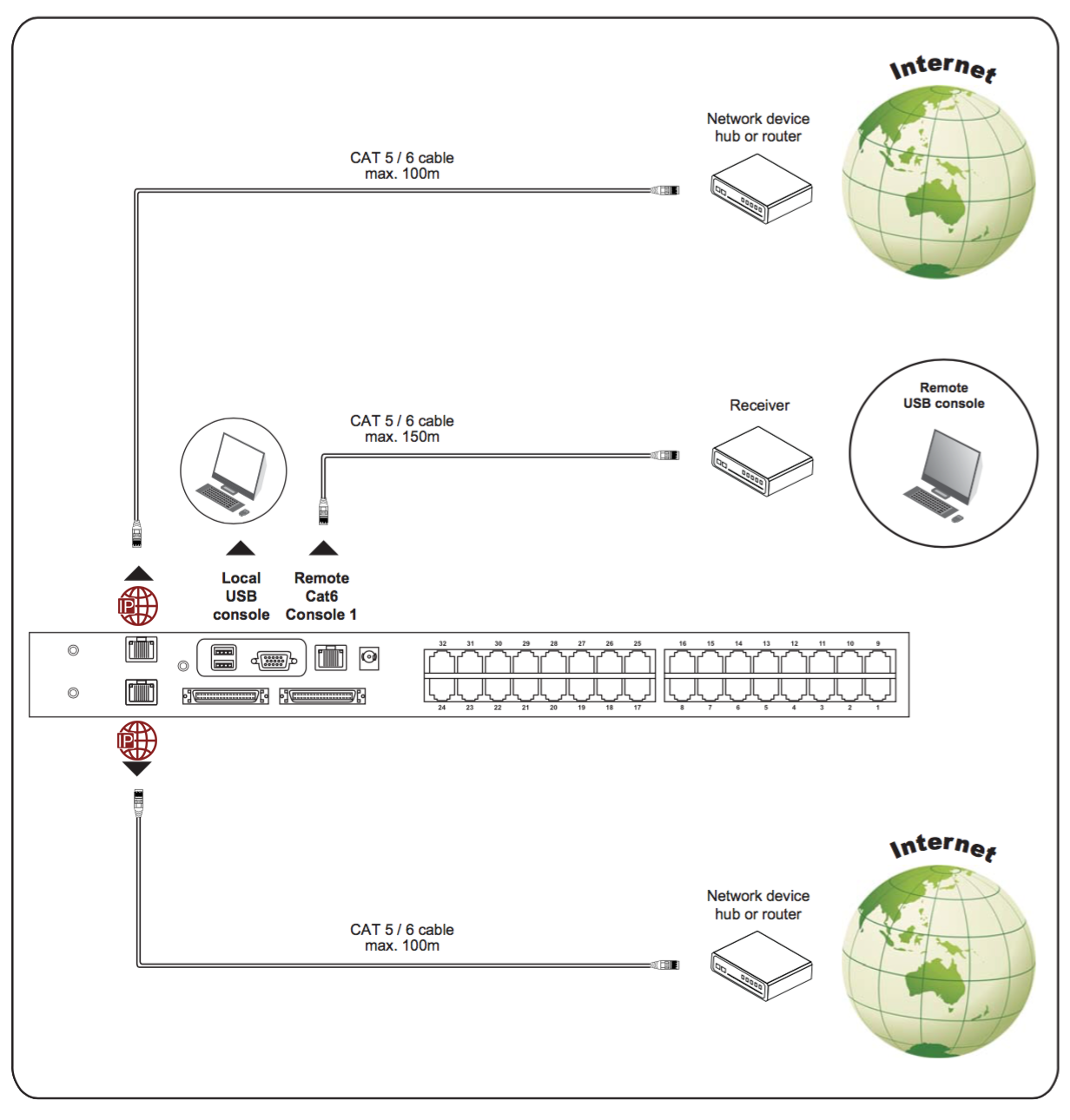

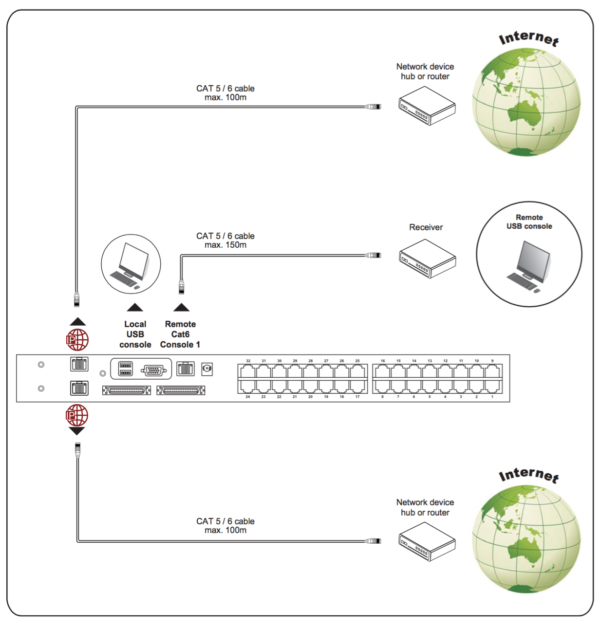

Providing computer and switch CATx connections up to 131 feet and extended user access up to 492 feet.
Fit for any environment
Meet the requirements of most data center, server room, test lab, or IDF closet.
Custom User Preferences
Advanced single- and multi-user profiles with configurable hot key combinations.
RALOY. WE'RE HERE FOR YOU.
Raloy has integration features
enabled through modular design.
Innovative Design
Traditional cabled and high density designs to meet the unique requirements of each rack environment.

Plug-&-Play Connectivity
Simple to install, configure, and operate for less down-time and greater productivity.
All in 1U
Optimize your rack space by integrating a KVM Switch into your Console Drawer, providing easy installation & streamlined access to your servers in only 1U.
Fully Customizable
Multiple port numbers and simultaneous user configurations to fulfill any access requirements.
