DVI-D + Audio

Supports Amplified

Access

Multi-server access plus audio switching.

extension

Integrate

Rack Console plus KVM Switch solutions in 1U.

done_all

Consolidate

Access multiple servers via single pane of glass.

HIGHLIGHTS     |     FEATURES     |     TECH SPECS     |     INTEGRATE

GREATER RESOLUTION Server Access

Supports audio and 1980 x 1200 resolution.

Stereo Audio

Audio switching for enhanced user experience.

12 Port

12 port DVI-D, USB & Audio accessibility.

High Resolution

Support for resolution up to 1980 x 1200.

Multi-Platform

Mix-&-Match PC, Sun, & Mac computers.

DVI-D + AUDIO PRODUCTS

Explore Raloy’s Mix-&-Match Opportunities.
View Allkeyboard_arrow_right

Features
& Benefits

  • 12 port DVI-D, USB & Audio.
  • DVI-D single link supports 1920 x 1200.
  • Support for widescreen & SUN 1152 x 900
  • Multi-platform for PCs, SUN, and Mac
  • Hot pluggable. No software or drivers required.
  • Supports VESA DDC2B emulation.
  • Port switching via push button & hot-keys.
Find Your Favorite

TECHNICAL SPECIFICATIONS!

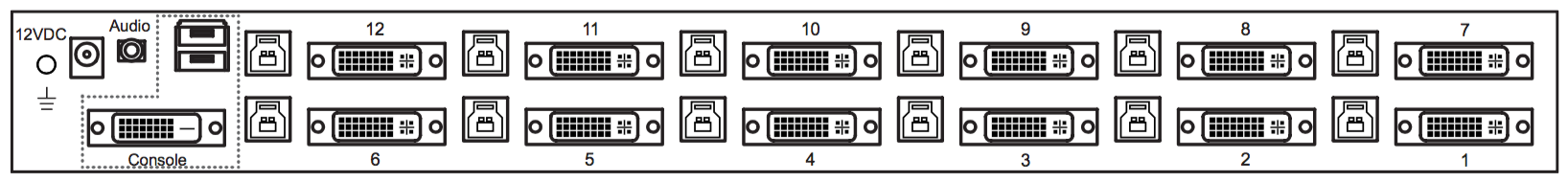

KVM PORTS
Number of Ports 12
Connector DVI-D connector
USB 3.0 connector (combined for keyboard, mouse & audio)

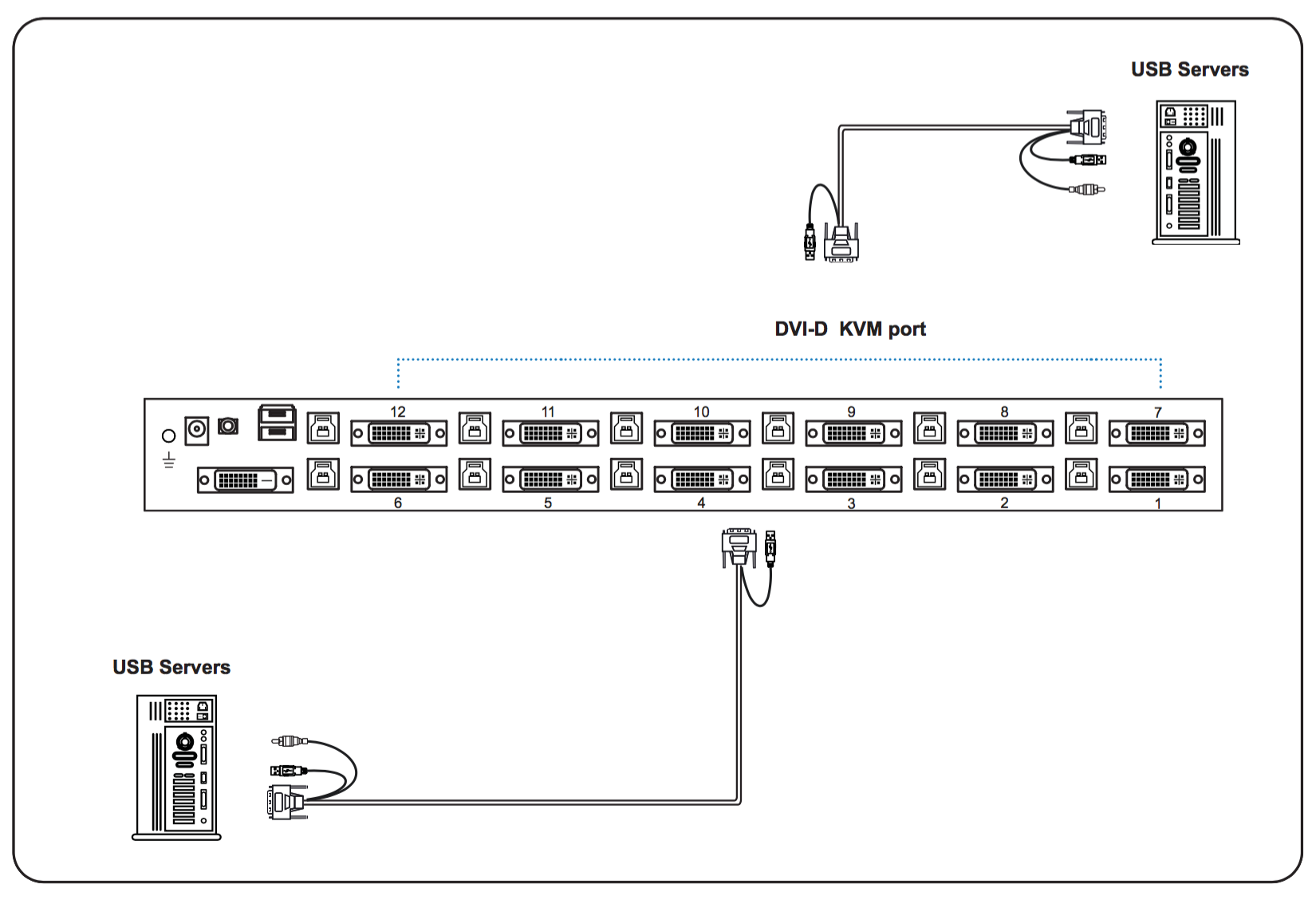

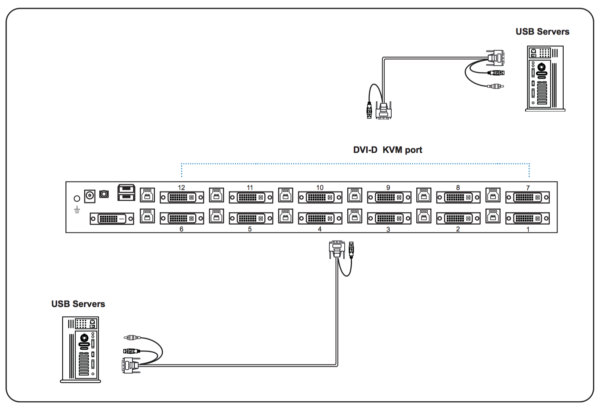

Connectivity DVI + USB + Audio KVM cable
LOCAL CONSOLE
Graphic Connector 1 x DVI-D
Resolution Up to 1920 x 1200
Input Device Type 2 x USB type A for keyboard & mouse
Audio out 1 x 3.5mm stereo audio
MANAGEMENT
PC Selection Front button & hotkey
COMPATIBILITY
Hardware HP / IBM / Dell PC, Server and Blade Server SUN / Mac OS
OS Support Windows / Linux / Unix / Mac OS
POWER
Input Auto sensing 100 to 240VAC, 50 / 60 Hz
Consumption Max. 13W
REGULATIONS
Safety FCC & CE certified
Environment RoHS2 & REACH compliant
ENVIRONMENTAL
Operating Temperature 32° – 131°F (0° – 55°C)
Storage Temperature -4° – 140°F (-20° – 60°C)
Operating Humidity 20~90%, non-condensing
Storage Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft (4,877 meters)
Non-Operating Altitude 40,000 ft (12,192 meters)
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random vibration
PRODUCT INFORMATION
Dimension (W x D x H) 17.4 x 6.7 x 1.73″ (443 x 171 x 44 mm)
Net Weight? 5.5 lb” (2.5 kg)
PACKING INFORMATION
Dimension (W x D x H) 19.7 x 15.7 x 3.5″ (500 x 400 x 90 mm)
Gross Weight? 11.9 lb” (5.4 kg)
Warranty 2 Years, extendable up to 5 years
file_download

Manual

DVI-D + AUDIO PRODUCT MATRIX!

Simultaneous UsersLocal ConsoleExtended ConsoleIP Console12 Port
1100DVIKVM112
