RNX119 - 19" Standard
Keep it fastened with a 2-point lock
for server racks in dynamic environments.
Standard Simplicity.
Featuring a 19" LCD display and 104-key notepad keyboard, with touchpad or trackball, the 2-point locking assembly fastens the RNX119 for dynamic environments. Also included is a 6 foot console cable designed specifically for Raloy devices. Enhance your rack by integrating a monitor, keyboard, mouse, and KVM Switch with this state-of-the-art, modular rack console drawer.
In the Box:
- 1 x 6ft console cable
- 1 x Power cord
- 8 x M6 screw, cage nut & cup washer
Optional Upgrades may add more items to the box.

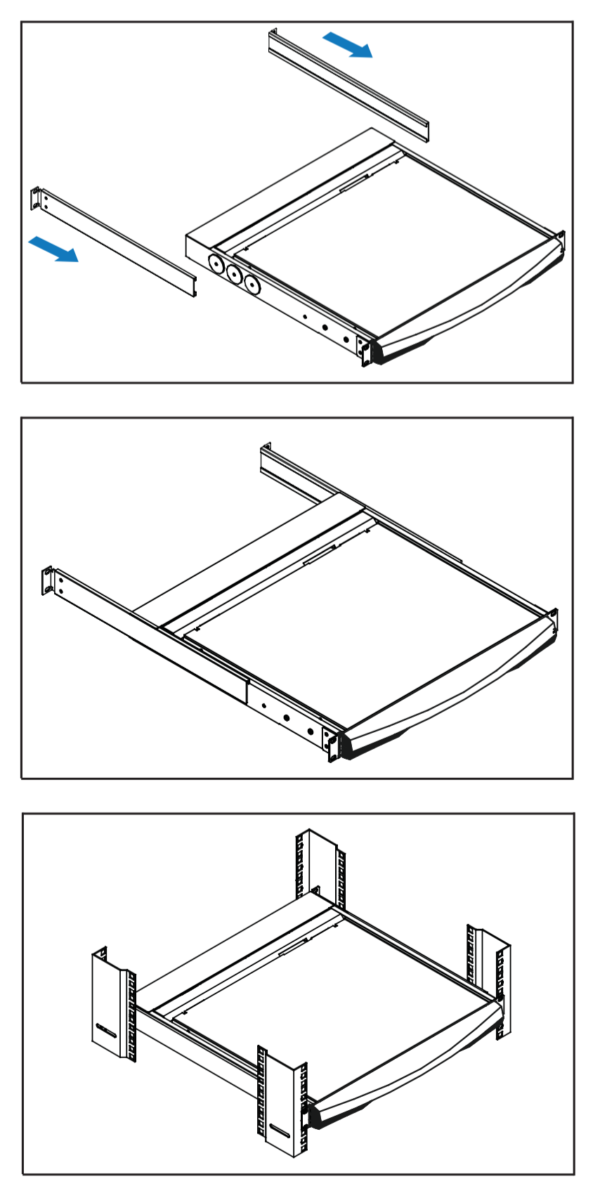

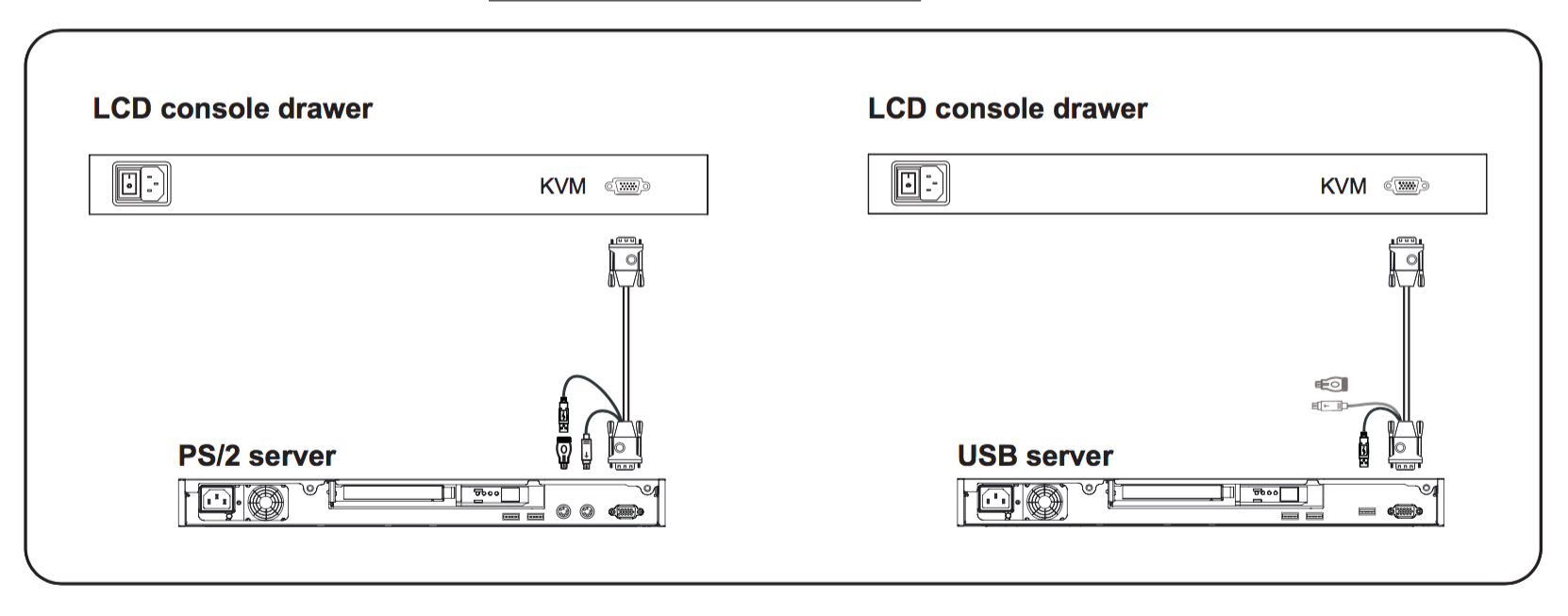

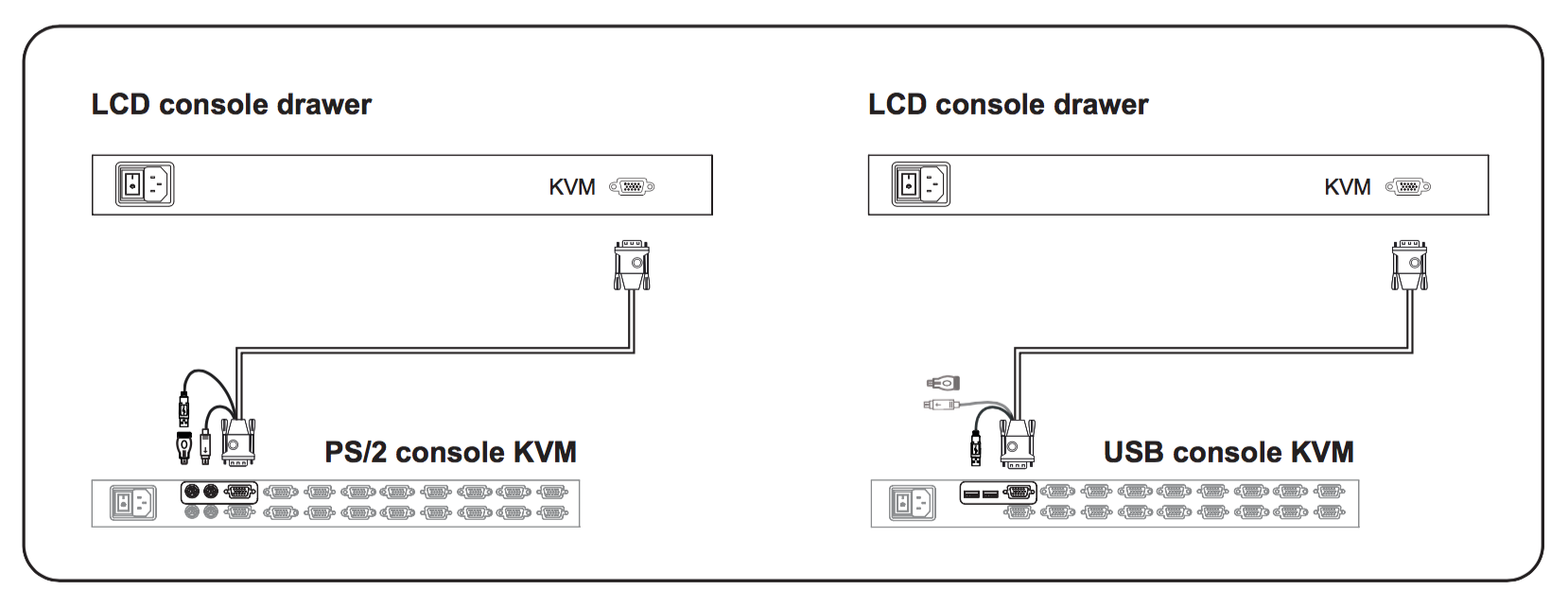

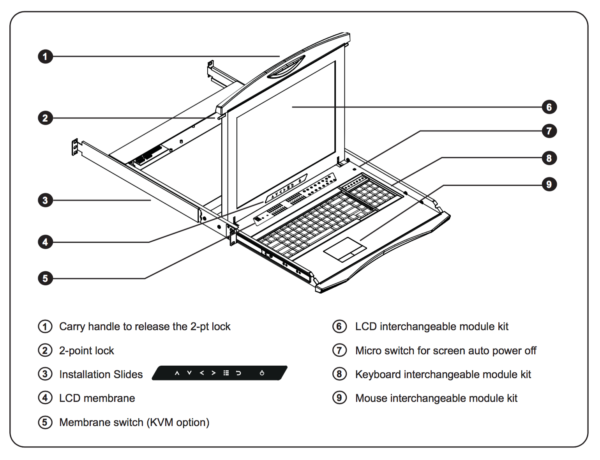

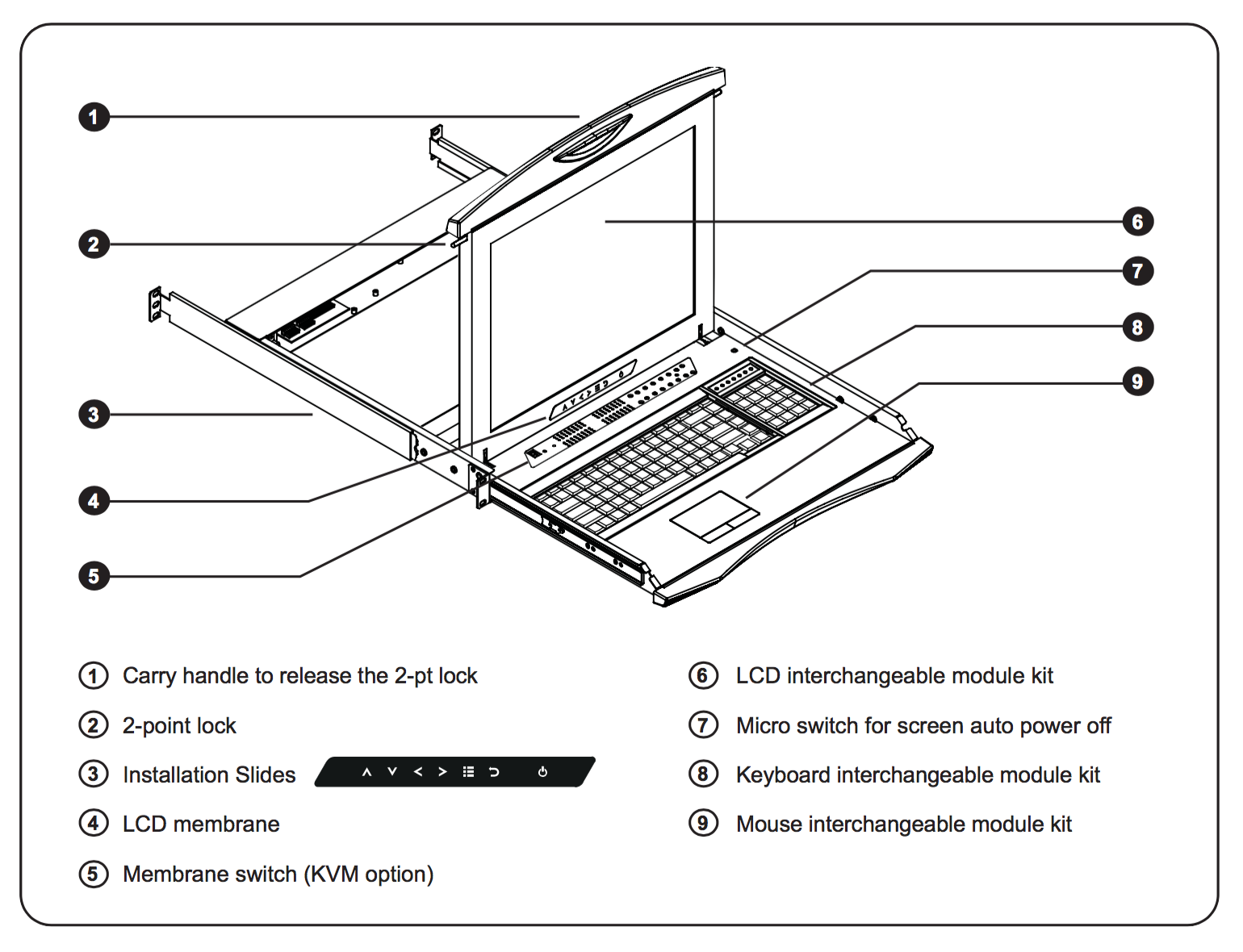

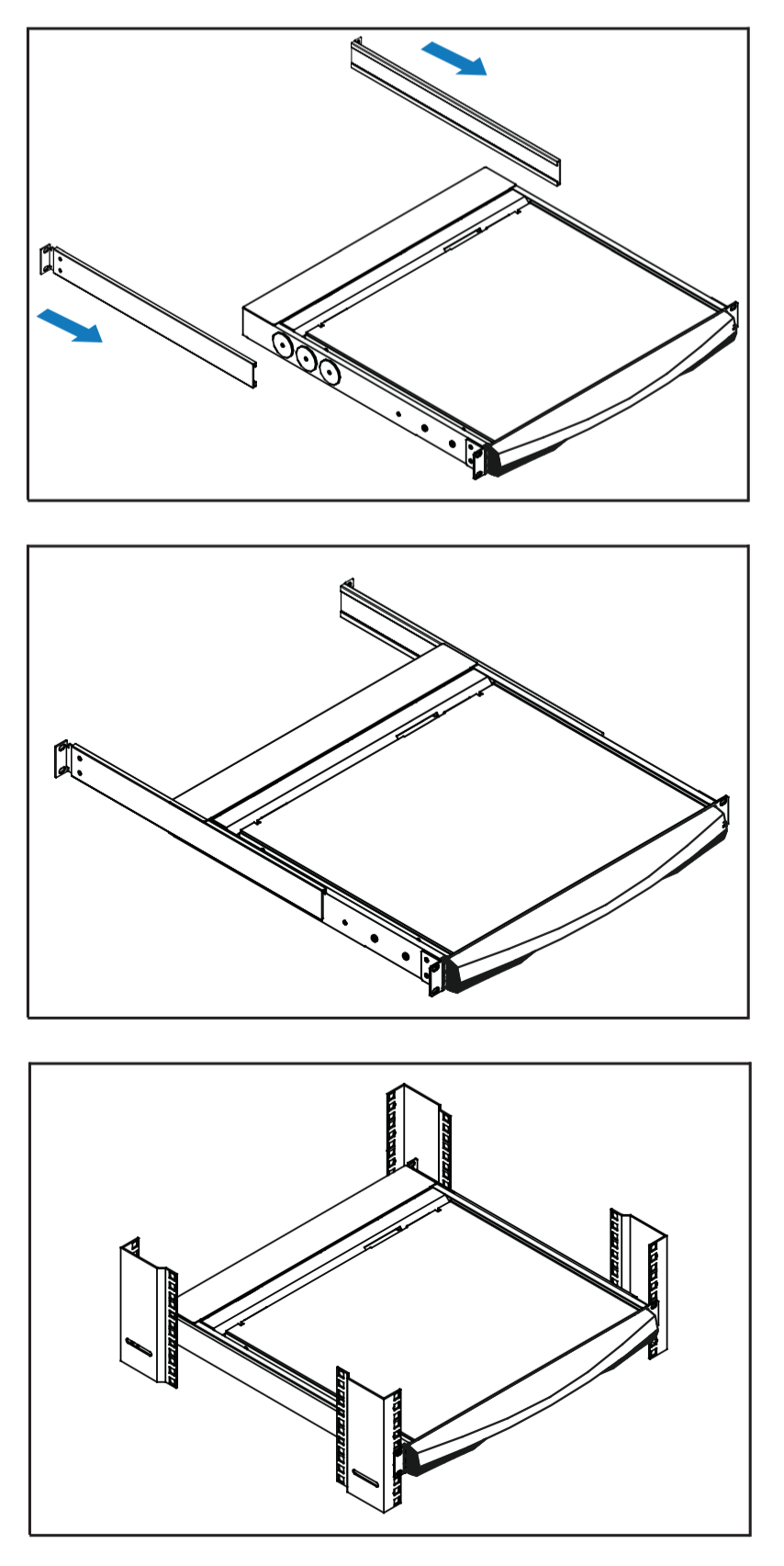

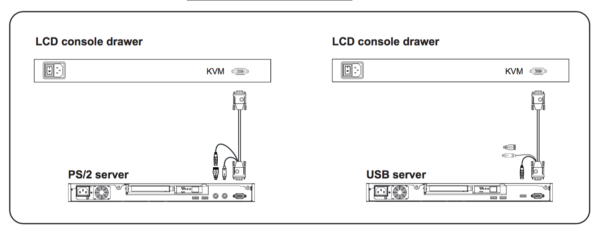

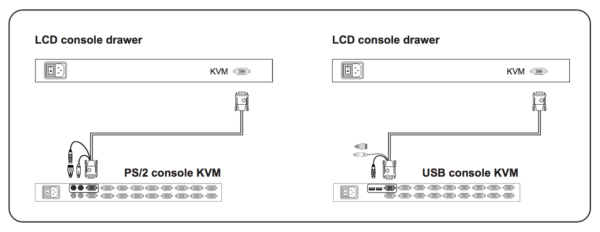

Setup is fast and easy. Simply plug in this cutting edge modular rack console with integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the LCD monitor and built-in keyboard and mouse.
To conserve valuable rack space, close the cover and slide the console module back out of the way when finished.
CLICK & BUY RALOY ONLINE
Purchase Raloy rack consoles and rackmount KVMs from our certified resellers.
RACK CONSOLE
| RNX119 | 19″ LCD Single Rack Console & Keyboard Drawer |
| Package Contains | 1 x 6ft console cable 1 x Power cord 8 x M6 screw, cage nut & cup washer |
| Compatibility | Mix various PC, SUN, MAC, IBM, HP & DELL servers. |
REGULATIONS
| Safety | cUL, FCC & CE certified |
| Environmental | RoHS2 & REACH compliant |
| Warranty | 2 Years, extendable up to 5 years |

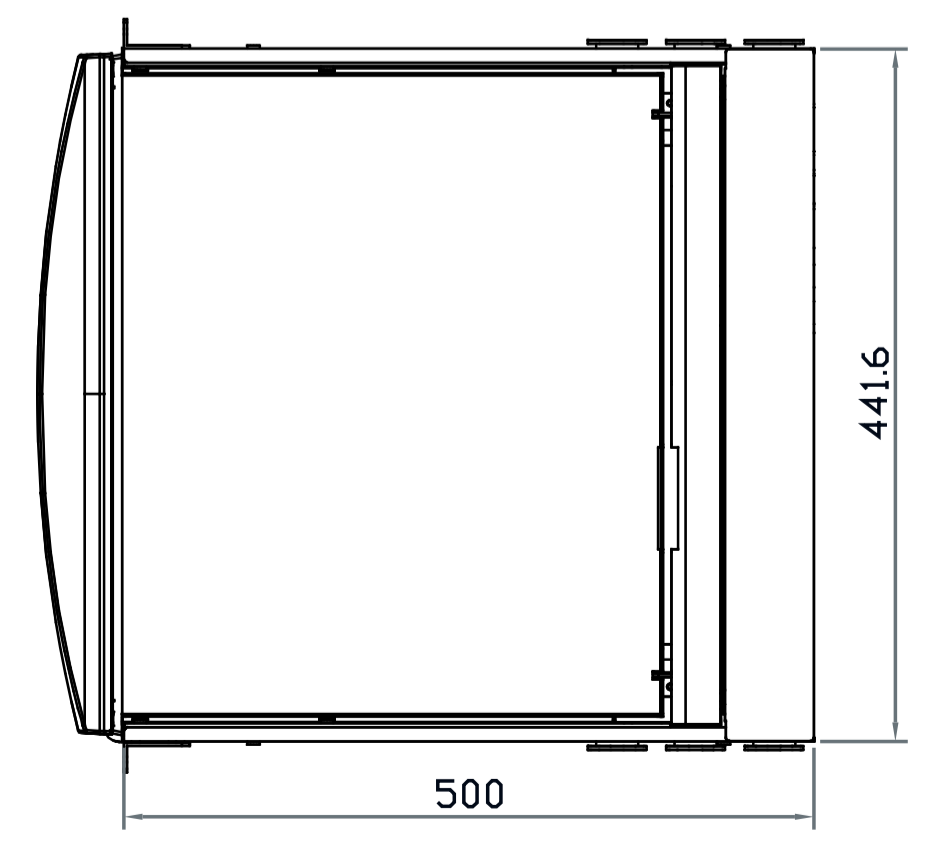

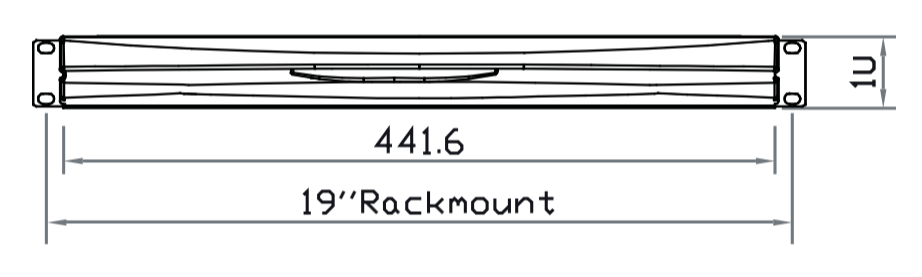

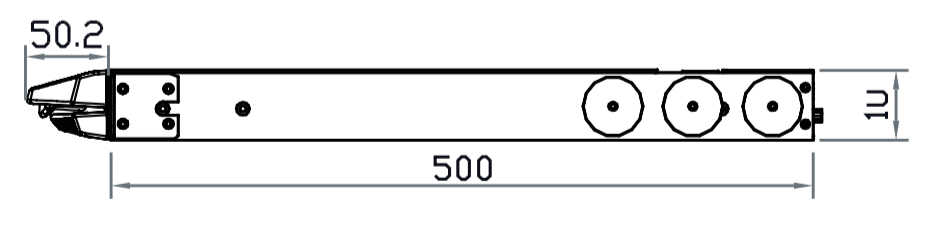

DIMENSIONS (Console Only)
| Product (W x D x H) | 17.4 x 19.7 x 1.73″ (441.6 x 500 x 44 mm) |
| Packing (W x D x H) | 23.2 x 31.8 x 5.5″ (590 x 808 x 140 mm) |
| Net Weight | 27.5 lbs (12.5 kg) |
| Gross Weight | 37.4 lbs (17 kg) |
| Mounting Depth | 17.5 to 30.5″ (444.5 to 762 mm) |
DIMENSIONS (with Integrated KVM)
| Product (W x D x H) | 17.4 x 24.4 x 1.73″ (441.6 x 620 x 44 mm) |
| Packing (W x D x H) | 23.2 x 31.8 x 5.5″ (590 x 808 x 140 mm) |
| Net Weight | 29.7 lbs (13.5 kg) |
| Shipping Weight | 40.5 lbs (18.4 kg) |
| Mounting Depth | 25 to 36.5″ (635 to 927.1 mm) |
POWER
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption | Screen On: Max 25W Power Saving Mode: Max. 4W Power Button On: Max. 1W |
ENVIRONMENTAL
| Operating Temperature | 32° to 131°F (0° to 55°C) |
| Storage Temperature | -4° to 140°F (-20° to 60°C) |
| Operating Humidity | 20~90%, non-condensing |
| Storage Humidity | 5~90%, non-condensing |
| Operating Altitude | 16,000 ft (4,877 meters) |
| Non-Operating Altitude | 40,000 ft (12,192 meters) |
| Shock | 10G acceleration (11 ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
LCD PANEL
| Diagonal Size | 19″ Fullscreen TFT |
| Max. Resolution px) | 1280 x 1024 |
| Brightness (cd/m2) | 250 |
| Backlight | LED |
| Color Support | 16.7M |
| Contrast Ratio (typ) | 1000:1 |
| Viewing Angle (H/V) | 170° x 160° |
| Display Area (H x W) | 376 x 301 mm |
| Response Time (ms) | 5 |
| MTBF (hrs) | 30,000 |
| Signal Input | VGA |
| Speaker (option) | 2 x Built-in Dual Stereo Speakers 2W |
Features & Benefits
- 19” LCD monitor (1280 x 1024) SXGA.
- Enhanced aesthetics with rounded modern front handle.
- 2-point locking assembly for dynamic environments.

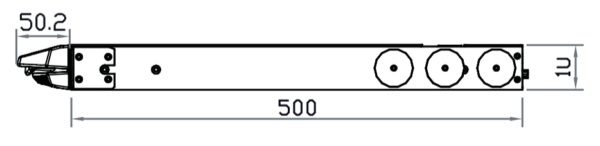

- 1U Short Depth design of 19.7” (500mm) to fit in most standard racks.

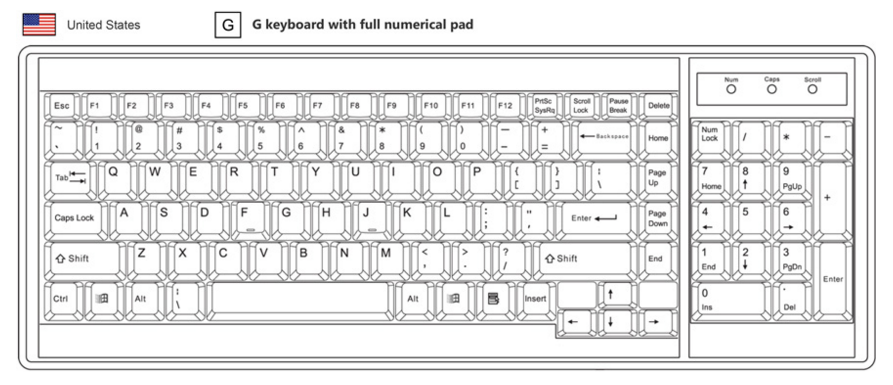

- 104-key keyboard with number pad and numerous language layouts.
- Available with touchpad or trackball options.
- Combo interface with PS/2 or USB input.
WE’VE GOT YOU COVERED
We are so confident in our products, your purchase is covered by an industry-leading 2 year warranty, extendable up to 5 years.
Share your thoughts
We’re happy when you’re happy, simple as that. We want to listen to how we may improve our site for you.
Recommendations
Coming Soon! Thank you for your patience. See All Cables.

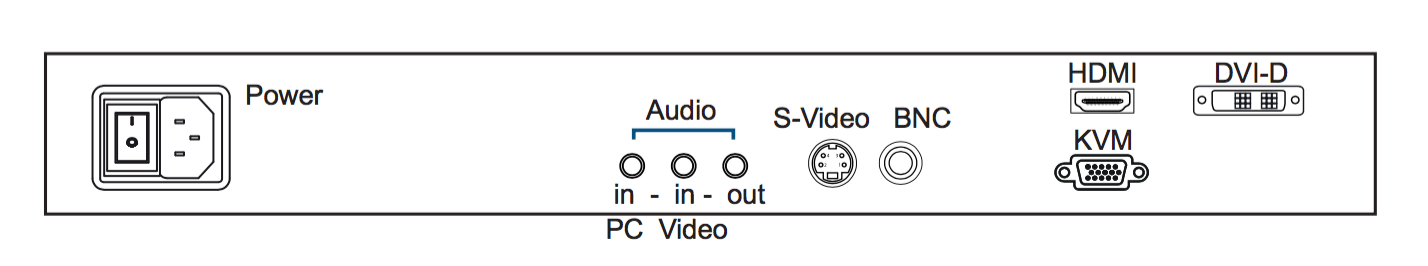

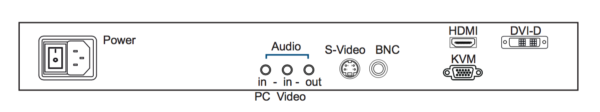

Options
For broadcast-grade video and high resolution CCTV market:
- 3G / HD / SD-SDI input
- HDMI / AV / Audio
For optimized Telco or Data Center power environments:

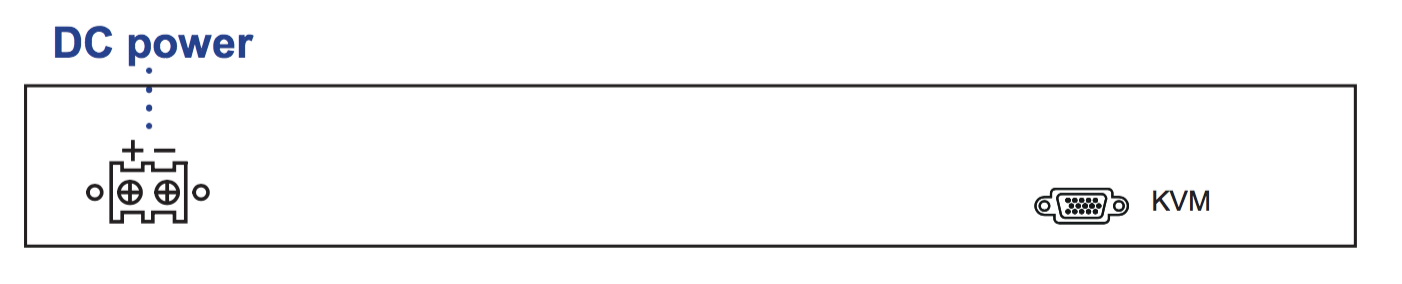

- DC Power
- Full Range KVM
Integrate it.
Dependable, integrated KVM switches for quick, efficient
at-the rack access of your critical servers.
Why Integrate?
Optimize your rack space by integrating a KVM Switch into your Console Drawer, providing easy installation & streamlined access to your servers in only 1U.
✓ Innovative Design
Traditional cabled and high density designs to meet the unique requirements of each rack environment.
✓ Plug-&-Play Connectivity
Simple to install, configure, and operate for less down-time and greater productivity.
✓ Fully Customizable
Multiple port numbers and simultaneous user configurations to fulfill any access requirements.
| Simultaneous Users | Local Console | Remote Console | IP Console | 8 Port | 16 Port | 32 Port |
|---|---|---|---|---|---|---|
| 1 | 1 | 0 | 0 | RNX119-KVM10008* | RNX119-KVM10016* | - - |
| 1 | 1 | 0 | 1 | RNX119-KVM10108* | RNX119-KVM10116* | - - |
| 1 | 1 | 1 | 0 | RNX119-KVM11008* | RNX119-KVM11016* | - - |
| 2 | 1 | 1 | 0 | - - | RNX119-KVM21016* | - - |
| 3 | 1 | 1 | 1 | - - | RNX119-KVM31116* | - - |
| 3 | 1 | 2 | 0 | - - | RNX119-KVM32016* | - - |
| 4 | 1 | 2 | 1 | - - | RNX119-KVM42116* | - - |
| 4 | 1 | 1 | 2 | - - | RNX119-KVM41216* | - - |
| 4 | 1 | 3 | 0 | - - | RNX119-KVM43016* | - - |
| Simultaneous Users | Local Console | Remote Console | IP Console | 8 Port | 16 Port | 32 Port |
|---|---|---|---|---|---|---|

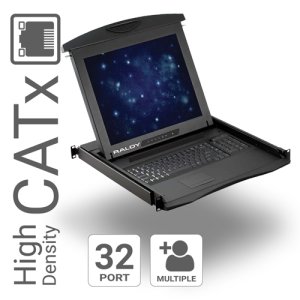

| 1 | 1 | 0 | 0 | RNX119-CATx10008* | RNX119-CATx10016* | RNX119-CATx10032* |
| 1 | 1 | 0 | 1 | RNX119-CATx10108* | RNX119-CATx10116* | RNX119-CATx10132* |
| 2 | 1 | 1 | 0 | - - | RNX119-CATx21016* | RNX119-CATx21032* |
| 3 | 1 | 1 | 1 | - - | RNX119-CATx31116* | RNX119-CATx31132* |
| 3 | 1 | 2 | 0 | - - | RNX119-CATx32016* | RNX119-CATx32032* |
| 4 | 1 | 2 | 1 | - - | RNX119-CATx42116* | RNX119-CATx42132* |
| 4 | 1 | 1 | 2 | - - | RNX119-CATx41216* | RNX119-CATx41232* |
| 4 | 1 | 3 | 0 | - - | RNX119-CATx43016* | RNX119-CATx43032* |
| Simultaneous Users | Local Console | Remote Console | IP Console | 12 Port |
|---|---|---|---|---|
| 1 | 1 | 0 | 0 | RNX119-DVIKVM112* |
We are sorry, the option to integrate a USB hub is not available at this time. Please see the RWX119 for an alternative USB Hub KVM Drawer.
