DB-15
is a Cost-effective way to
Access
Traditional cabled access to servers.
Consolidate
Access multiple servers via single pane of glass.
HIGHLIGHTS | FEATURES | TECH SPECS | OVERVIEW | INTEGRATE
COST-EFFECTIVE Server Access
Most affordable with all KVM cables included.

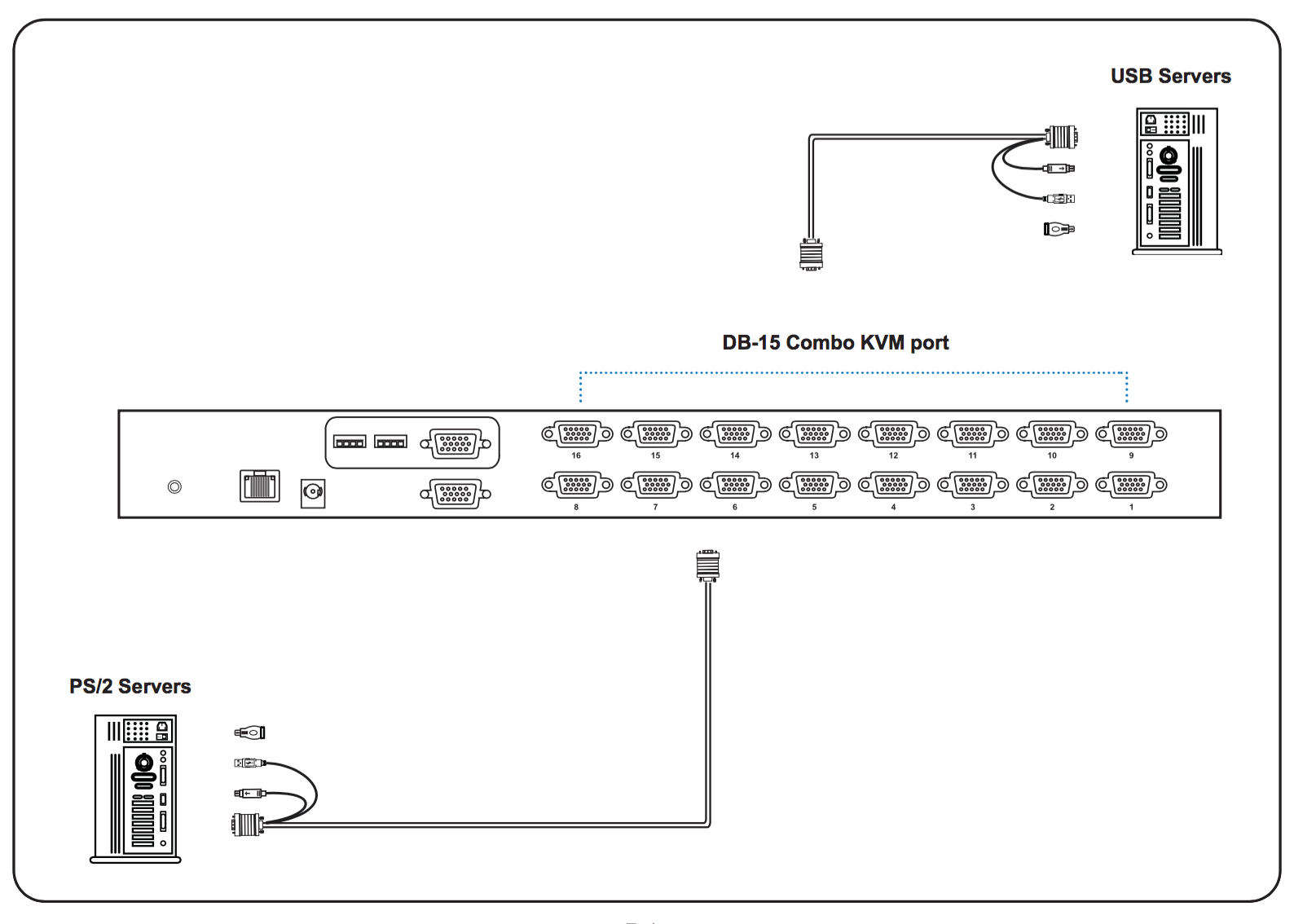

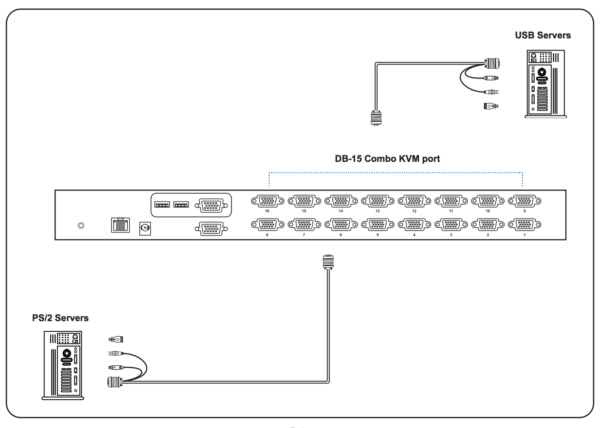

USB & PS/2 Connectivity
Combo USB-PS/2 cables included.
Port Variety Options
8 & 16-port versions.

IP Options
IP-enabled models available.
Single- & Multi-User Access
Multi-user access through extended user consoles or IP connectivity.
DB-15 PRODUCTS
Explore Raloy’s Mix-&-Match Opportunities.
Features
& Benefits
- 8 or 16 ports in 1U.
- Extended user access up to 492 feet on select models.

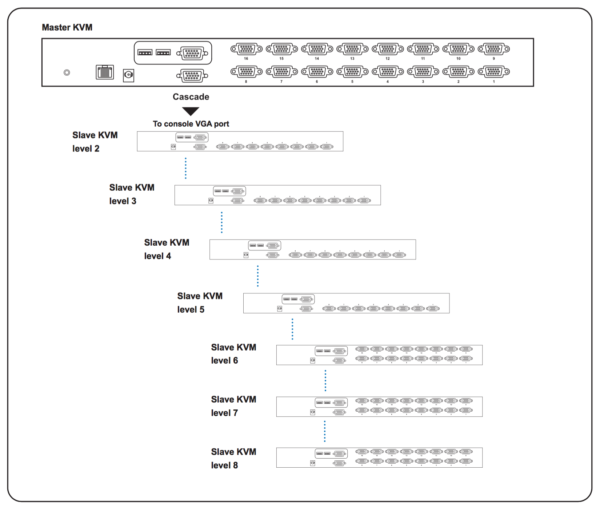

- Cascade switches up to 8 levels
- Support resolutions up to 1920 x 1080.
- SUN 1152 x 900 resolution compatible.
- Multi-platform switch capability.
- IP-enabled on select models.
- Cost-efficient remote server management.

TECHNICAL SPECIFICATIONS!
KVM PORTS
Number of Ports | 8 or 16 |
Connection Type | DB-15 combo connector |
Connectivity | DVI-D + USB, VGA + USB, VGA + PS/2 KVM cables up to 6, 10 or 15 feet |
Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac Windows 7 / Vista / 2003 / XP, Linux, Unix |
Expansion | Up to 128 Servers by 8-level cascade |
LOCAL CONSOLE
Monitor Port | 1 x DB-15 VGA (Up to 1920 x 1080 / 1920 x 1200) |
Keyboard & Mouse Port | 2 x USB type connector for keyboard & mouse |
CATX REMOTE CONSOLE*
Remote Port | 1, 2, or 3 based on corresponding KVM Switch |
Monitor Port | DB-15 pin VGA (Up to 1600 x 1200) |
Keyboard & Mouse Port | 2 x USB type connector for keyboard & mouse |
Remote I/O | RJ45 via CATx cable up to 500 feet |
COMPATIBILITY
Hardware | HP / IBM / Dell PC, Server and Blade server, SUN / Mac |
OS Support | Windows / Linux / Unix / Mac OS |
* Available on certain models only.
REGULATIONS
Safety | cUL, FCC & CE certified |
Environment | RoHS2 & REACH compliant |
POWER
Input | AC power adapter |
Consumption | Max. 16W |
ENVIRONMENTAL
Operating Temperature | 32° to 131°F (0° to 55°C) |
Storage Temperature | -4° – 140°F (-20° – 60°C) |
Operating Humidity | 20~90%, non-condensing |
Storage Humidity | 5~90%, non-condensing |
Operating Altitude | 16,000 ft (4,877 meters) |
Non-Operating Altitude | 40,000 ft (12,192 meters) |
Shock | 10G peak acceleration (11ms duration) |
Vibration | 5~500Hz 1G RMS random vibration |
PRODUCT INFORMATION
Dimension (W x D x H) | 17.4 x 6.7 x 1.73″ (443 x 171 x 44 mm) |
Net Weight | 6.5 lb (3 kg) |
PACKING INFORMATION
Dimension (W x D x H) | 19.7 x 15.7 x 3.5″ (500 x 400 x 90 mm) |
Net Weight | 11 lb (5 kg) |
Warranty | 2 Years, extendable up to 5 years |
DB-15 PRODUCT MATRIX!
Simultaneous Users | Local Console | Extended Console | IP Console | 8 Port | 16 Port |
---|---|---|---|---|---|
1 | 1 | 0 | 1 | KVM10108 | KVM10116 |
1 | 1 | 1 | 0 | KVM11008 | KVM11016 |
1 | 1 | 0 | 0 | KVM10008 | KVM10016 |
2 | 1 | 1 | 0 | KVM21008 | KVM21016 |
3 | 1 | 2 | 0 | KVM32008 | KVM32016 |
4 | 1 | 3 | 0 | KVM43008 | KVM43016 |
3 | 1 | 1 | 1 | KVM31108 | KVM31116 |
4 | 1 | 2 | 1 | KVM42108 | KVM42116 |
4 | 1 | 1 | 2 | KVM41208 | KVM41216 |
Cost-effective
Designed to provide a cost-effective solution to managing servers.
Custom Access
Available in single- & multi-user models with 8, 16, or 32 ports and optional remote connection via CATx or KVM-over-IP.
Remote Access
Designed for optional extended user access in high density environments via CATx cable (Category 5, 5e, or 6).

Traditional Connection
Each DB-15 KVM Switch includes KVM cables for lowest cost of ownership.
Fit for any environment
Range of KVM switches provide secure local, remote, and global IP user(s) control of servers.
Custom User Preferences
Advanced single- and multi-user profiles with configurable hot key combinations.
RALOY. WE'RE HERE FOR YOU.
Raloy has integration features
enabled through modular design.
Innovative Design
Traditional cabled and high density designs to meet the unique requirements of each rack environment.

Plug-&-Play Connectivity
Simple to install, configure, and operate for less down-time and greater productivity.

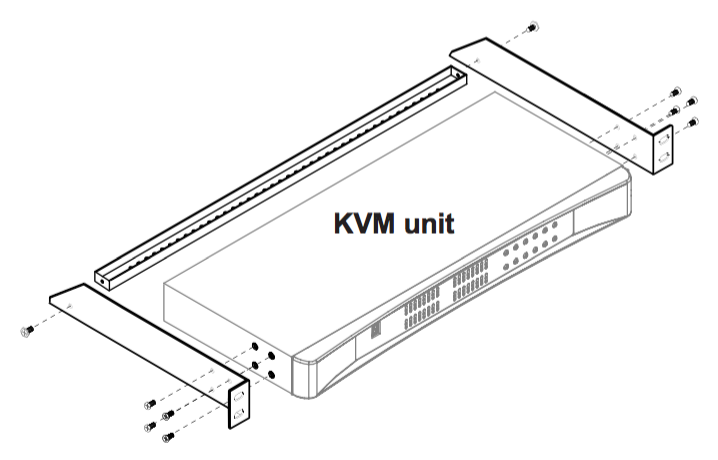

All in 1U
Optimize your rack space by integrating a KVM Switch into your Console Drawer, providing easy installation & streamlined access to your servers in only 1U.
Fully Customizable
Multiple port numbers and simultaneous user configurations to fulfill any access requirements.
