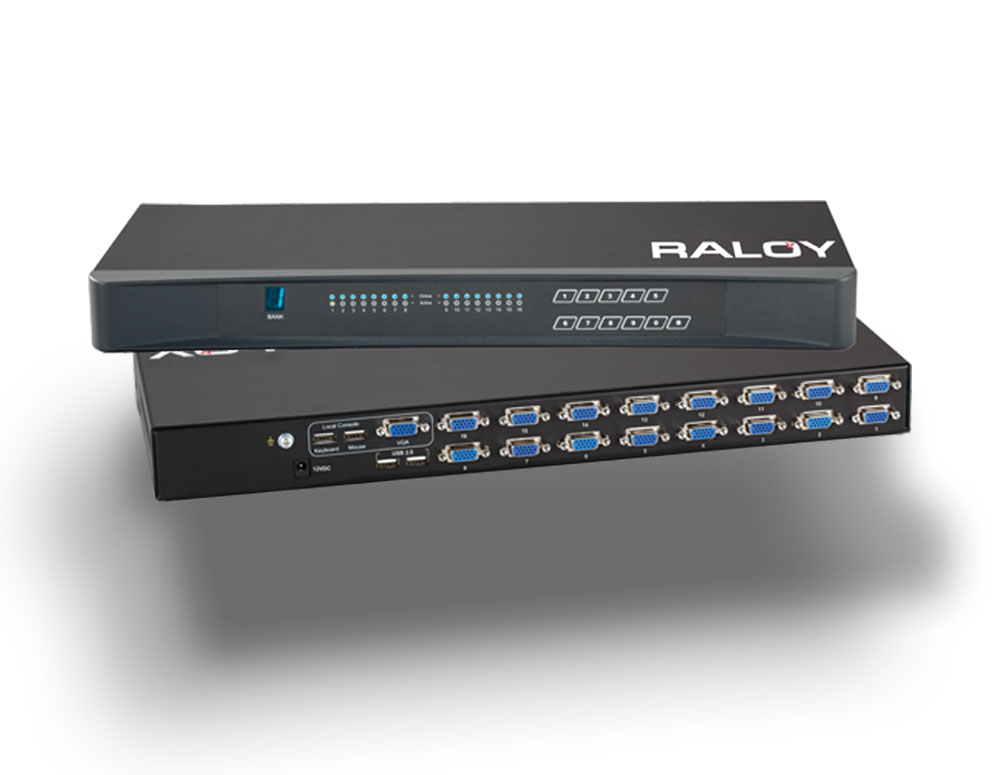

Product_Switch_USBHub_Hover

USB Hub

Quickly Combines

Access

Multi-server access + USB peripheral sharing.

extension

Integrate

Rack Console plus KVM Switch solutions in 1U.

done_all

Consolidate

Access multiple servers via single pane of glass.

HIGHLIGHTS     |     FEATURES     |     TECH SPECS     |     INTEGRATE

PERIPHERAL SHARING Server Access

Supports sharing two USB peripheral devices and 1920 x 1080 resolution.

Flexible Sharing

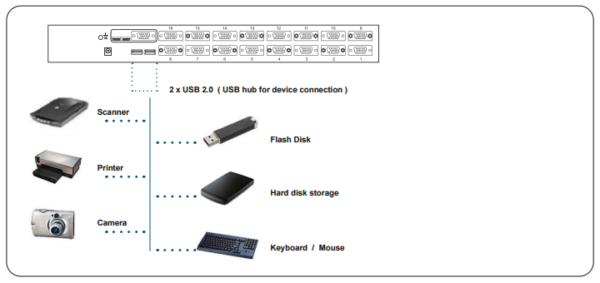

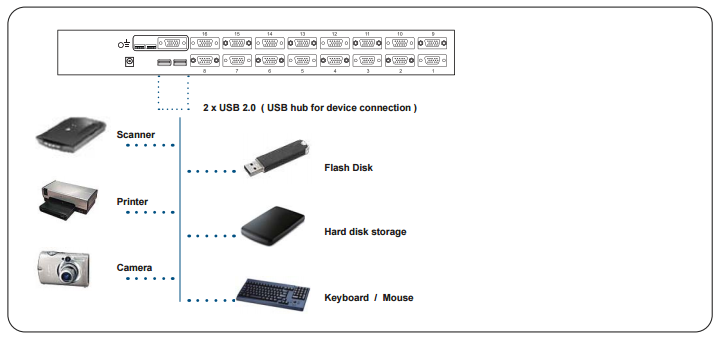

Share printers, scanners, cameras, etc through one device.

Port Variety

VGA-USB KVM either 8 or 16 ports in 1U.

High Resolution

Support for resolutions up to 1920 x 1080p.

Multi-platform Access

Mix-&-Match PC, Sun, & Mac computers.

USB HUB PRODUCTS

Explore Raloy’s Mix-&-Match Opportunities.

Features
& Benefits

  • VGA-USB KVM with either 8 or 16 ports in 1U.
  • 2 x USB 2.0 ports for sharing USB peripherals with target computers.
  • Mix USB & SUN with Multi-Platform switch capability.
  • Support for resolutions up to 1920 x 1080.
  • Hot pluggable, no software or divers required.
  • Easy & quick installation.
  • IP remote access versions available.
  • Extended console up to 500 feet (150 m) versions available.

TECHNICAL SPECIFICATIONS!

KVM PORTS
Number of Ports 8 or 16

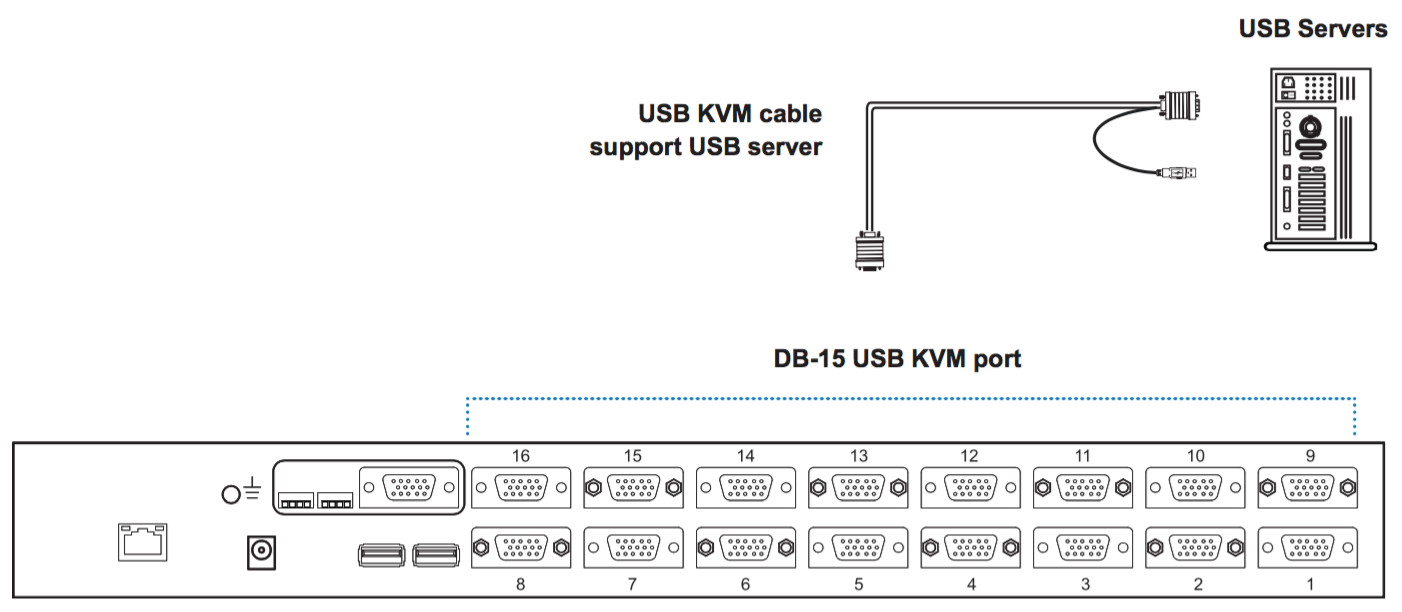

Connection Type DB-15 combo connector
Connectivity Combo 2-in-1 VGA + USB KVM cable, 6, 10 or 15 ft
LOCAL CONSOLE
Graphic Connection 1 x DB-15
Resolution Up to 1920 x 1200
Input Device 2 x USB type A for keyboard & mouse
USB Hub 2 x USB type A for sharing other peripheral devices among the computers
MANAGEMENT
Multi-Lingual OSD English, France, German, Spanish, Italian, Russian, Simplified Chinese, Japanese
Hotkey Combination Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win
Security Password enable & disable, up to 8 user profiles for port access
PC Selection Front button, OSD menu & hotkey
COMPATIBILITY
Hardware HP / IBM / Dell PC, Server and Blade Server, SUN / Mac
OS Support Windows / Linux / Unix / Mac OS
POWER
Input Auto sensing 100 to 240VAC, 50 / 60 Hz
Option DC 12V / 24V / 48V / 110 ~ 125V DC input
Consumption Max. 10W
REGULATIONS
Safety FCC & CE certified
Environment RoHS2 & REACH compliant
ENVIRONMENTAL
Operating Temperature 32° – 131°F (0° – 55°C)
Storage Temperature -4° – 140°F (-20° – 60°C)
Operating Humidity 20~90%, non-condensing
Storage Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft (4,877 meters)
Non-Operating Altitude 40,000 ft (12,192 meters)
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random vibration
PRODUCT INFORMATION
Dimension (W x D x H)?? 17.4 x 6.7 x 1.73″ (443 x 171 x 44 mm)
Net Weight? 6.5 lb (3 kg)
PACKING INFORMATION
Dimension (W x D x H)?? 19.7 x 15.7 x 3.5″ (500 x 400 x 90 mm)
Gross Weight? 11 lb (5 kg)
Warranty 2 Years, extendable up to 5 years

* Available on certain models only.

USB HUB PRODUCT MATRIX!

Simultaneous UsersLocal ConsoleExtended ConsoleIP Console8 Port16 Port
1100HKVM10008HKVM10016
1110HKVM11008HKVM11016
1101HKVM10108HKVM10116

RALOY. WE’RE HERE FOR YOU.

Icon_Category_ConsoleKit_Red_Transparent_v01

Raloy has integration features
enabled through modular design.

Innovative Design

Traditional cabled and high density designs to meet the unique requirements of each rack environment.

Plug-&-Play Connectivity

Simple to install, configure, and operate for less down-time and greater productivity.

done_all

All in 1U

Optimize your rack space by integrating a KVM Switch into your Console Drawer, providing easy installation & streamlined access to your servers in only 1U.

extension

Fully Customizable

Multiple port numbers and simultaneous user configurations to fulfill any access requirements.
