HIGH DENSITY Server Access

More ports, improved cable management, plus increased server-to-switch distances.

Port Variety Options

8, 16, and 32-port versions.

CATx-Friendly

Create custom CATx cable lengths to ease cable management.

Single- & Multi-User Access

Multi-user access through extended user consoles or IP connectivity.

Greater Distance

Extend the distance from servers-to-switch, up to 131 ft (40 m).

HIGH DENSITY CATx PRODUCTS

Explore Raloy’s Mix-&-Match Opportunities.
View Allkeyboard_arrow_right

Features
& Benefits

  • Remote access via CATx.
  • IP enabled models available.
  • Easy cabling and high port density.

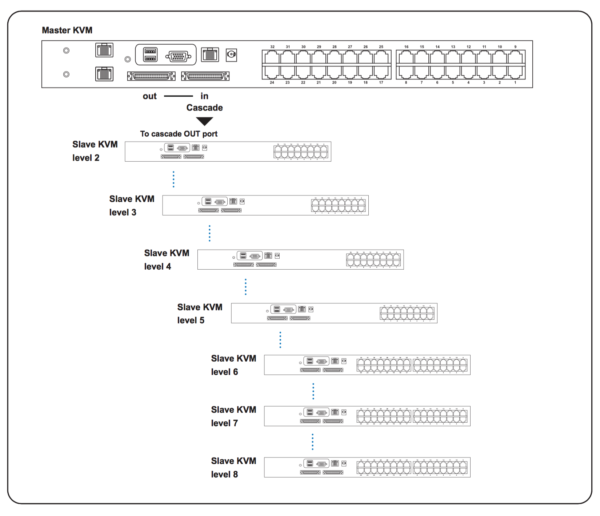

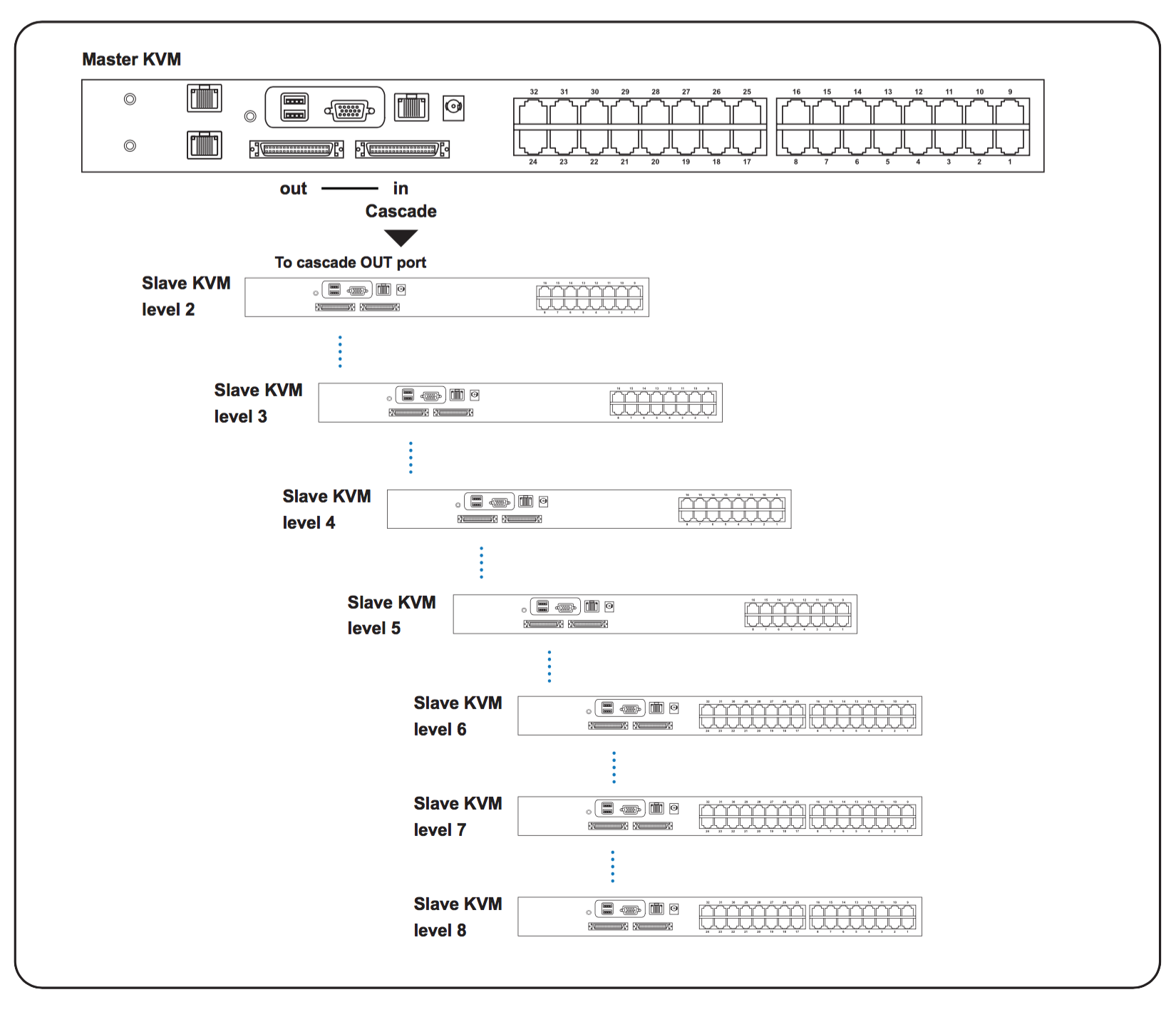

  • Cascade switches up to 8 levels.
  • Up to 131 feet between servers and KVM.
  • Versatile options and flexibility:
    • Single user and multi user models.

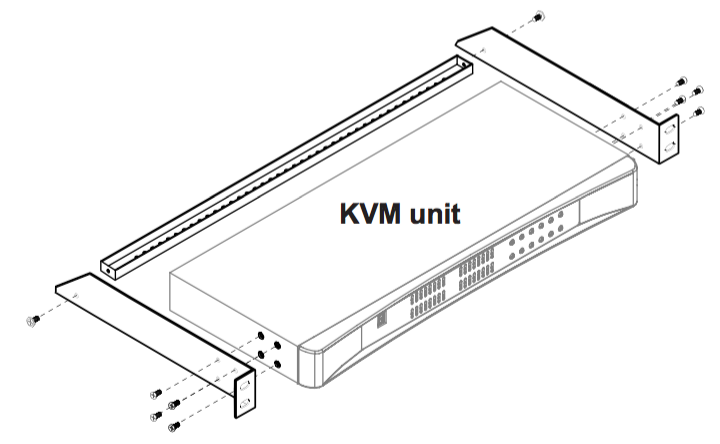

    • 8, 16, or 32 ports in 1U rack space.
    • VGA, DVI, HDMI, & DisplayPort CatX KVM Dongles with USB or PS/2.
    • Multi-platform switch capability.
    • Integrate with any Raloy LCD console.
Find Your Favorite

TECHNICAL SPECIFICATIONS!

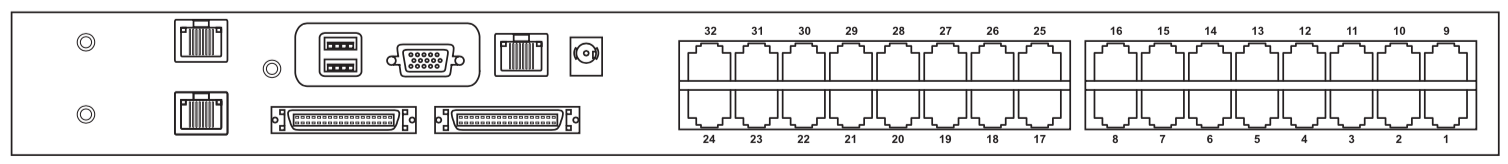

KVM PORT
Number of Ports 8, 16, or 32
Connector RJ-45

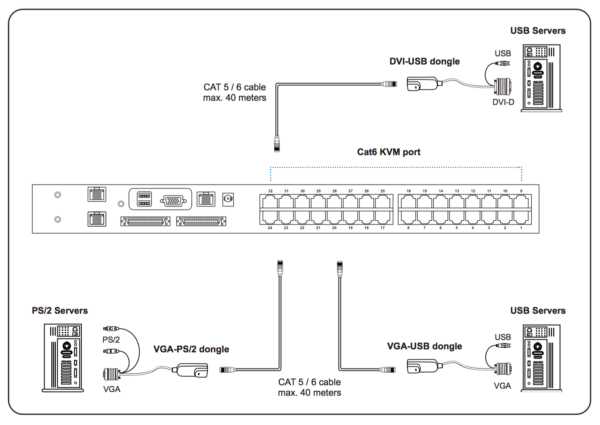

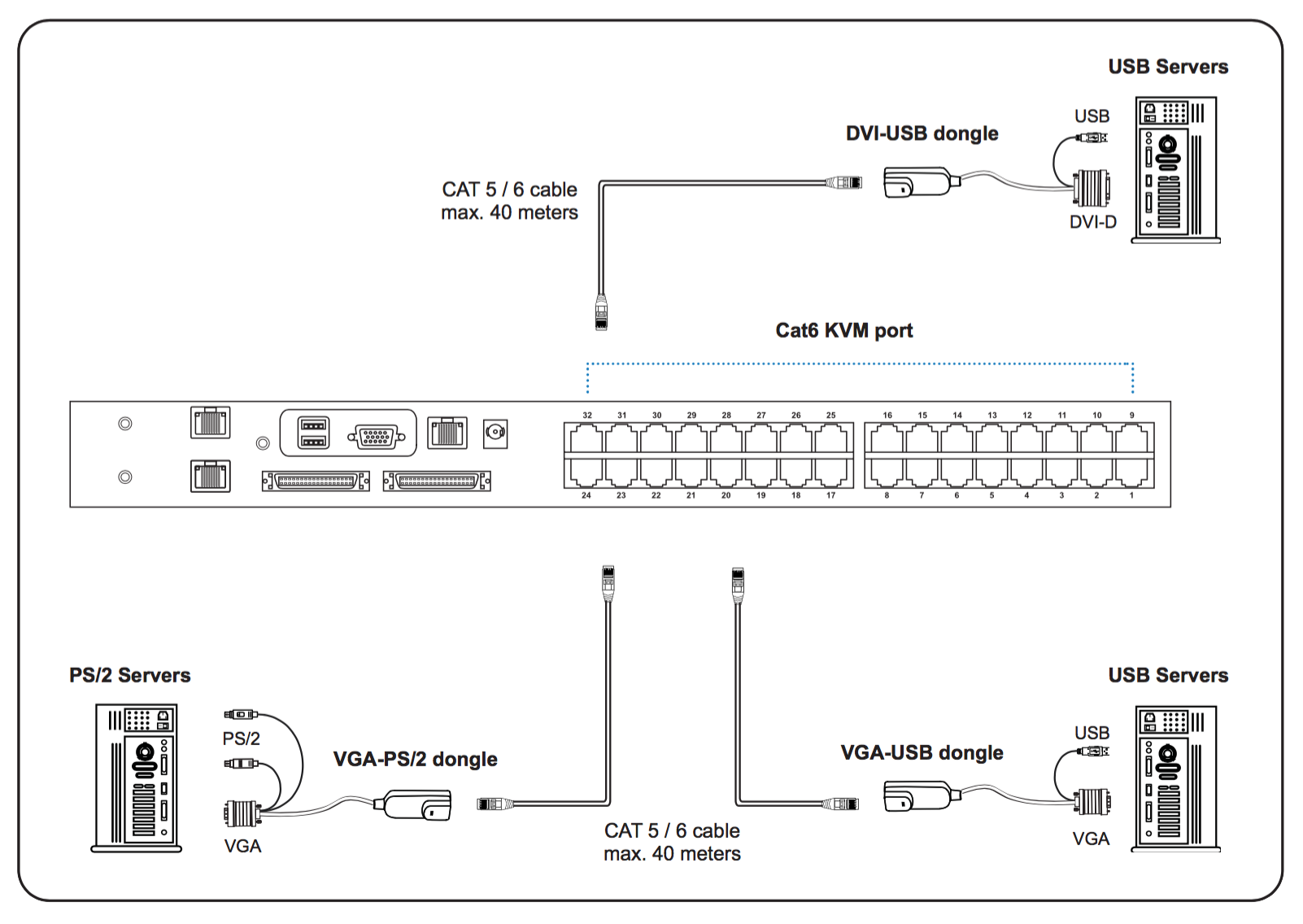

Connectivity HDMI + USB, DisplayPort + USB, DVI-D + USB, VGA + USB, or VGA + PS/2 connector dongle up to 131 feet (40 meters) via CATx cable
Compatibility Mix PCs, SUN and Mac G3 / G4 Mac / iMac
Windows 7 / Vista / 2003 / XP, Linux, Unix
Expansion Up to 256 servers by 8-level cascade
LOCAL CONSOLE
Monitor Port 1 x DB-15-pin VGA, up to 1600 x 1200
Keyboard & Mouse Port 2 x USB type connector for keyboard & mouse
Resolution Support 4:3 – max. 1600 x 1200
16:1- – max. 1440 x 900
CATX REMOTE CONSOLE*
Remote Ports 1, 2, or 3 based on corresponding KVM Switch
Monitor Port DB-15-pin VGA, up to 1600 x 1200
Keyboard & Mouse Port 2 x USB type connector for keyboard & mouse
Remote I/O RJ45 via CATx cable up to 500 ft
Resolution Support 4:3 – max. 1600 x 1200
16:10 – max. 1440 x 900
COMPATIBILITY
Hardware HP / IBM / Dell PC, Server and Blade Server, SUN / Mac
OS Support Windows / Linux / Unix / Mac OS

* Available on certain models only.

POWER
Input AC power adapter
Consumption Max. 20W
REGULATIONS
Safety cUL, FCC & CE certified
Environment RoHS2 & REACH compliant
ENVIRONMENTAL
Operating Temperature 32° – 131°F (0° – 55°C)
Storage Temperature -4° – 140°F (-20° – 60°C)
Operating Humidity 20~90%, non-condensing
Storage Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft (4,877 meters)
Non-operating Altitude 40,000 ft (12,192 meters)
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random vibration
PRODUCT INFORMATION
Dimension (W x D x H) 17.4 x 6.7 x 1.73″ (443 x 171 x 44 mm)
Net Weight 6.5 lb (3 kg)
PACKING INFORMATION
Dimension (W x D x H) 19.7 x 15.7 x 3.5″ (500 x 400 x 90 mm)
Gross Weight 11 lb (5 kg)
Warranty 2 Years, extendable up to 5 years
file_download

Manual

CATx PRODUCT MATRIX!

Simultaneous UsersLocal ConsoleExtended ConsoleIP Console8 Port16 Port32 Port
1101CATx10108CATx10116CATx10132
1110CATx11008CATx11016CATx11032
1100CATx10008CATx10016CATx10032
2110- -CATx21016CATx21032
3120- -CATx32016CATx32032
4130- -CATx43016CATx43032
3111- -CATx31116CATx31132
4121- -CATx42116CATx42132
4112- -CATx41216CATx41232
person_add

Custom Access

Available in single- & multi-user models with 8, 16, or 32 ports and dedicated daisy chain ports for expansion up to 8 levels (256 servers).

Remote Access

Designed for optional extended user access in high density environments via CATx cable (Category 5, 5e, or 6).

done_all

Flexible & Versatile

All Raloy KVM Switches are available as standalone KVM switches or may be incorporated with any Raloy LCD console.

Reach Greater Distances

Providing computer and switch connections up to 131 feet, extended user access up to 492 feet, and optional IP access.

Fit for any environment

CATx KVM switches provide secure local, remote, and global IP user(s) control of servers.

Configuration Variety

Deliver multi-platform switch capability, multi-lingual on screen display, dual power with fail-over, and DC power options.
