RD119 - 19" Dual Slide
Dual slide in 1U so you can see the
monitor from outside the rack.
Dual Slide.

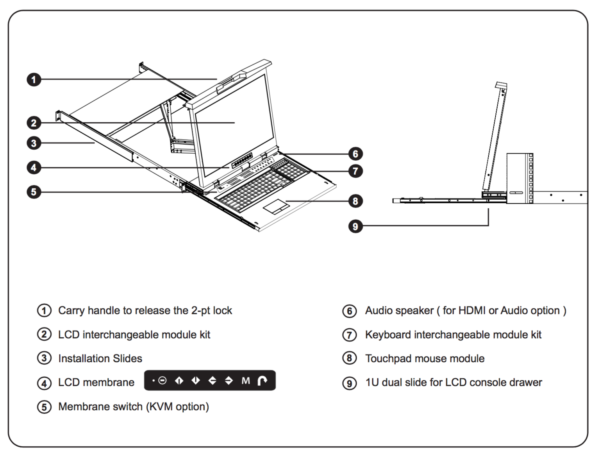

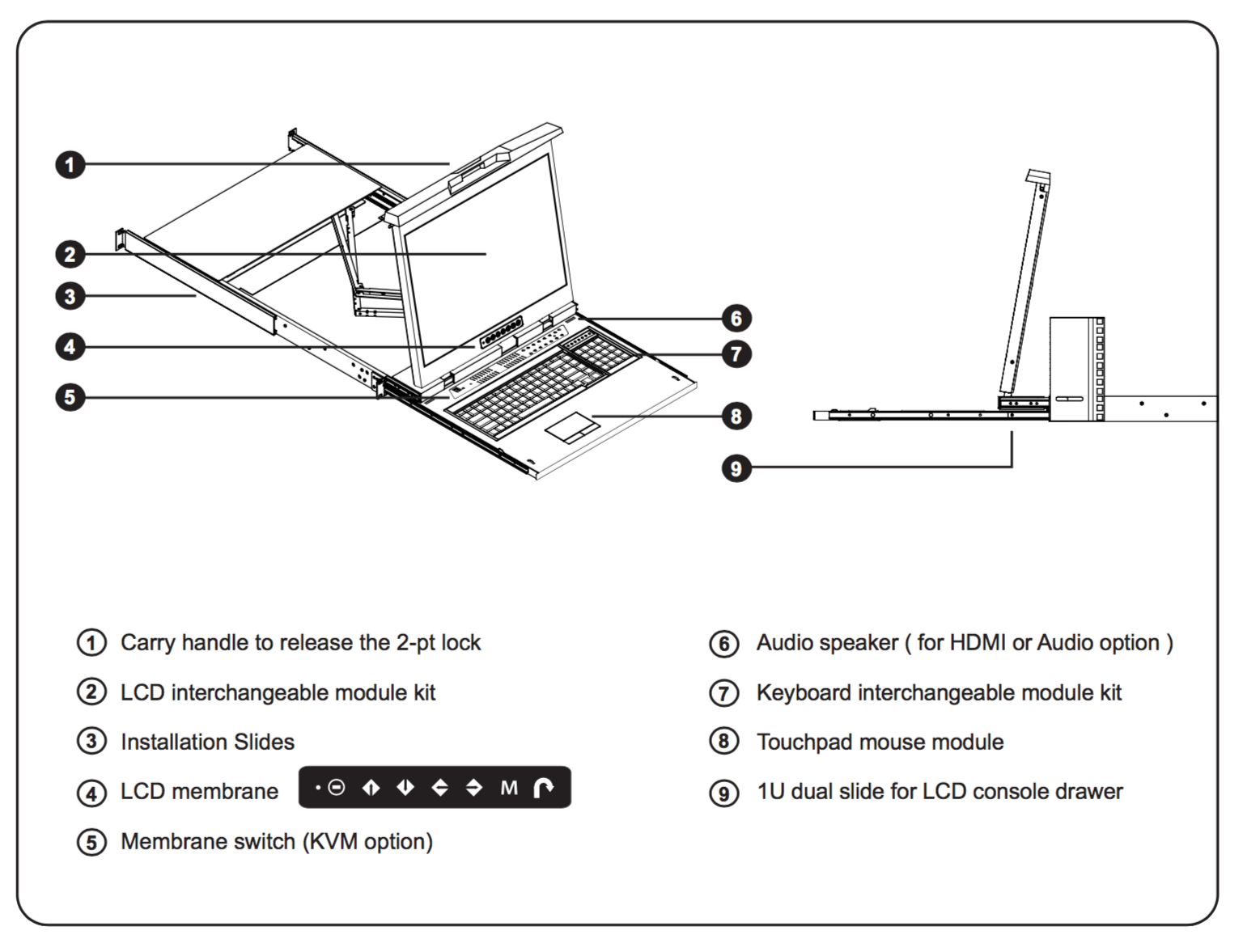

Are you looking for a way to monitor your systems easily from outside the rack while maintaining secure access? If so, then the Raloy RD119 Dual Slide LCD Series is the product for you. The Raloy RD119 features a retractable keyboard and independently sliding LCD display. Simply lift the 19” LCD screen upwards to view your monitoring systems or other critical applications without having to open the rack. By keeping the rack locked, you are able to maintain the security of your systems. If you need to make updates or address an issue, pull the 104-key notepad keyboard from beneath the screen. This convenient setup will not only save you space, but also maintain security.
The Raloy RD119 features a 104-key notepad keyboard available in numerous international languages, a 19” LED-backlit panel, and a 6 foot console cable included for PS/2 or USB input. By integrating the LCD monitor, KVM switch, Keyboard, and Mouse in a
state-of-the-art rack console, Raloy offers a space-saving, modular approach to any rack environment.
In the Box:
- 1 x 6ft console cable
- 1 x Power cord
- 8 x M6 screw, cage nut & cup washer
Optional Upgrades may add more items to the box.

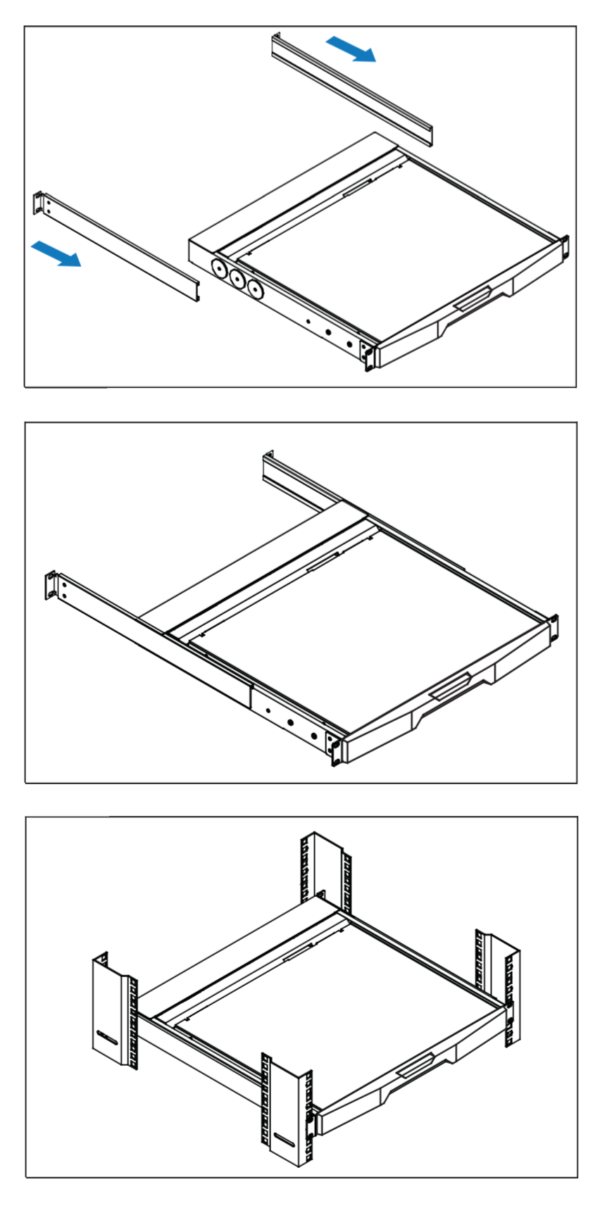

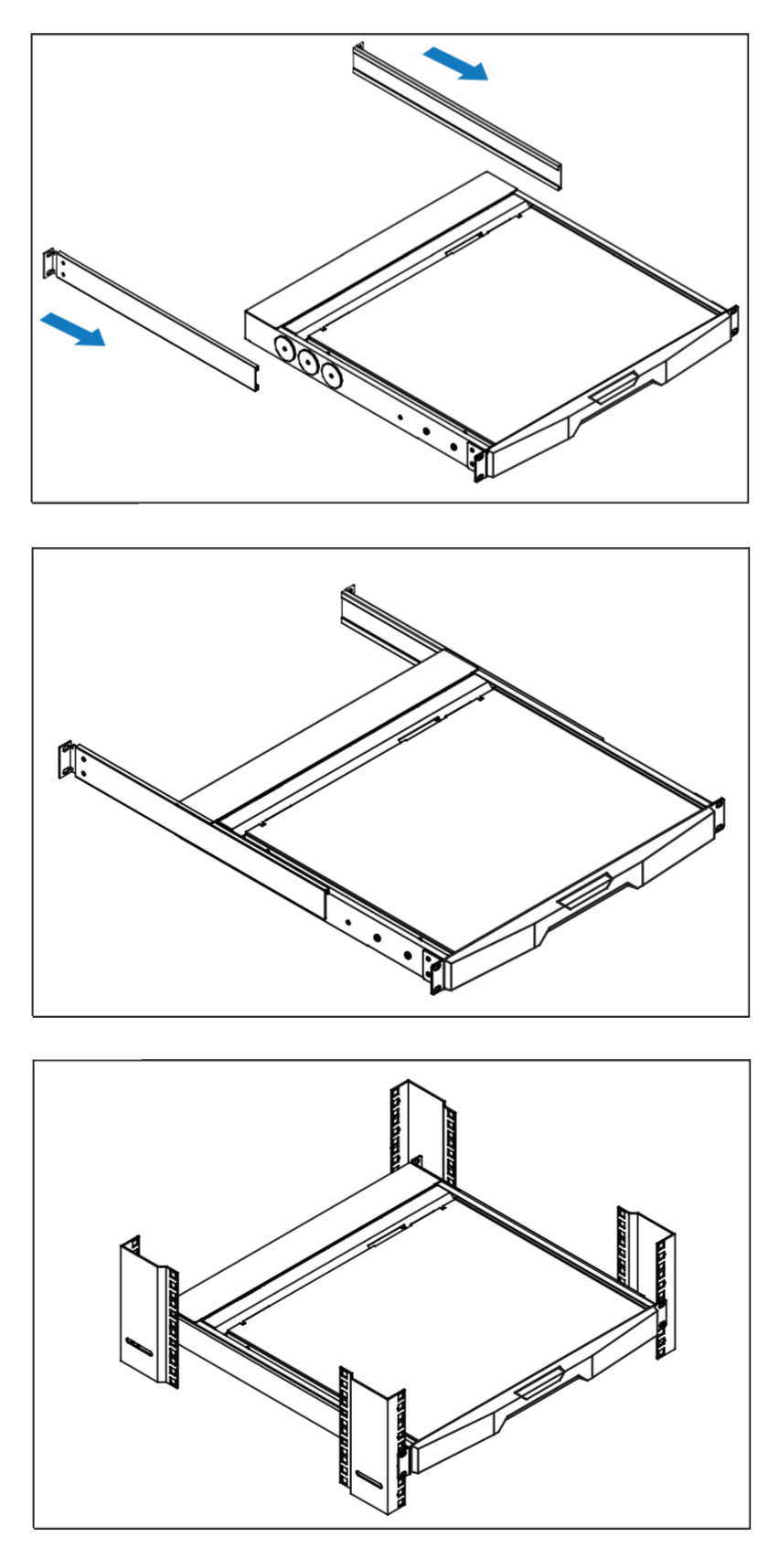

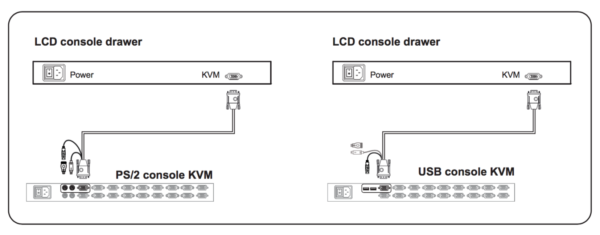

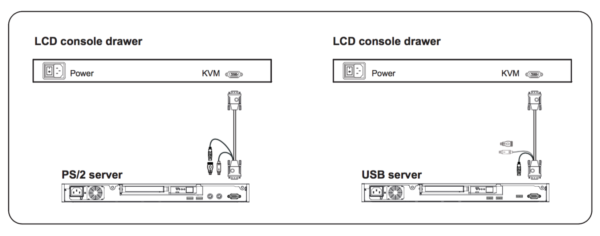

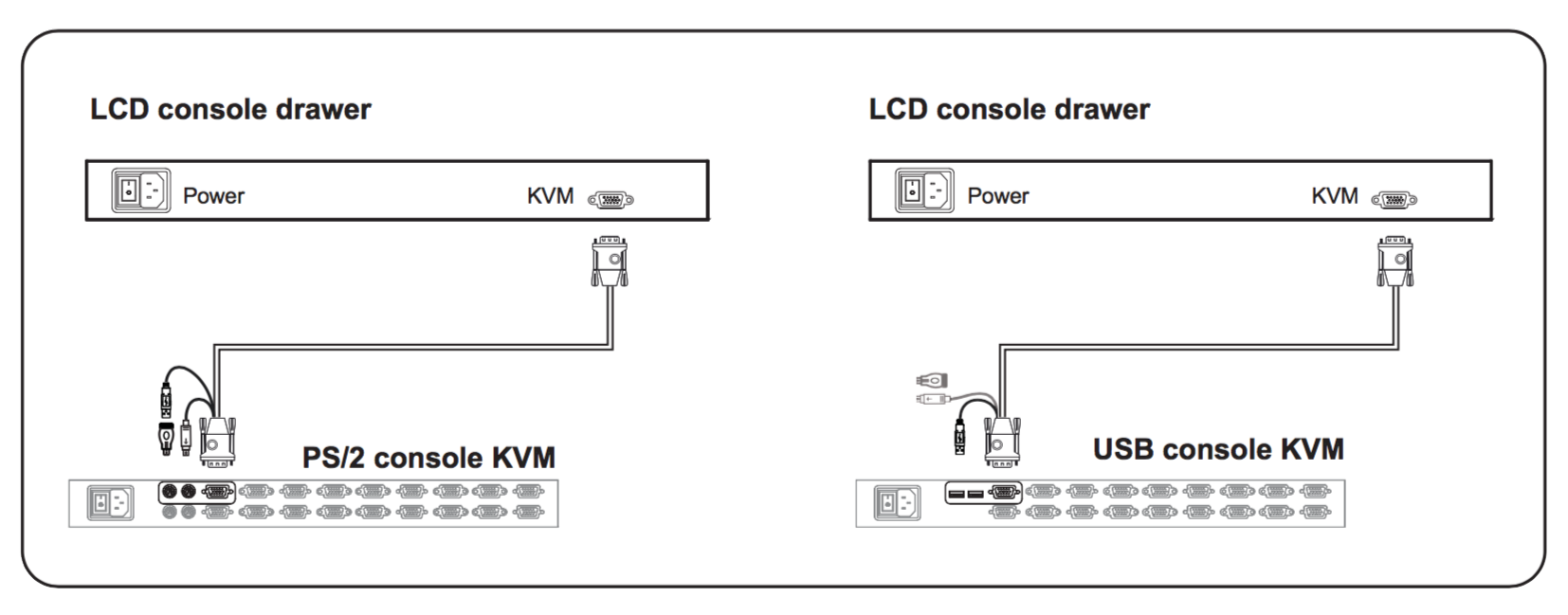

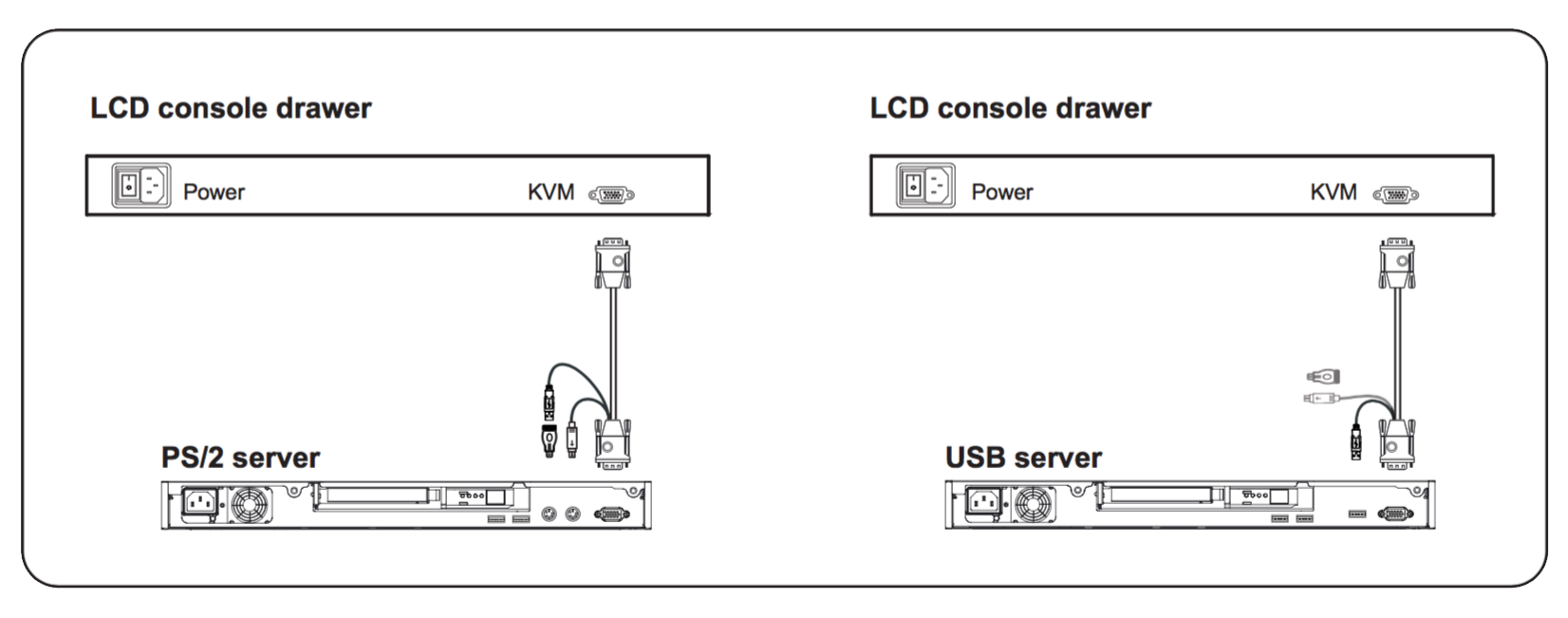

Setup is fast and easy. Simply plug in this cutting-edge, modular rack console with integrated KVM and you are ready to go. To use, slide the rack console unit out and open the cover to reveal the LCD monitor and built-in keyboard and mouse.
To conserve valuable rack space, close the cover and slide the console module back out of the way when finished.
Tech Specs: RD119
Supporting Docs
Keyboard Options
Tech Specs: RD119
RACK CONSOLE
| RD119 | 19″ Dual Slide LCD Single Rack Console & Keyboard Drawer |
| Package Contains | 1 x 6ft console cable 1 x Power cord 8 x M6 screw, cage nut & cup washer |
| Compatibility | Mix various PC, SUN, MAC, IBM, HP & DELL servers. |
REGULATIONS
| Safety | cUL, FCC & CE certified |
| Environmental | RoHS2 & REACH compliant |
| Warranty | 2 Years, extendable up to 5 years |
DIMENSIONS (Console Only)

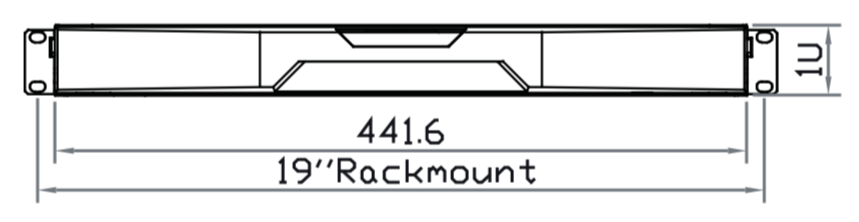

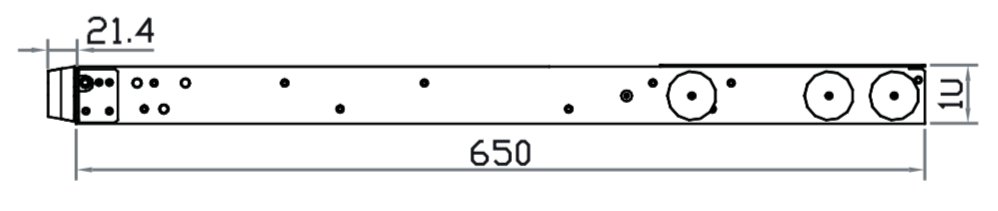

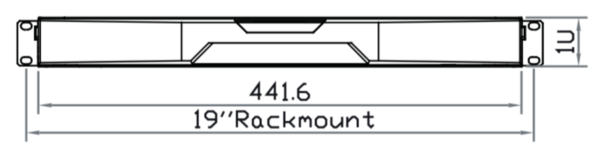

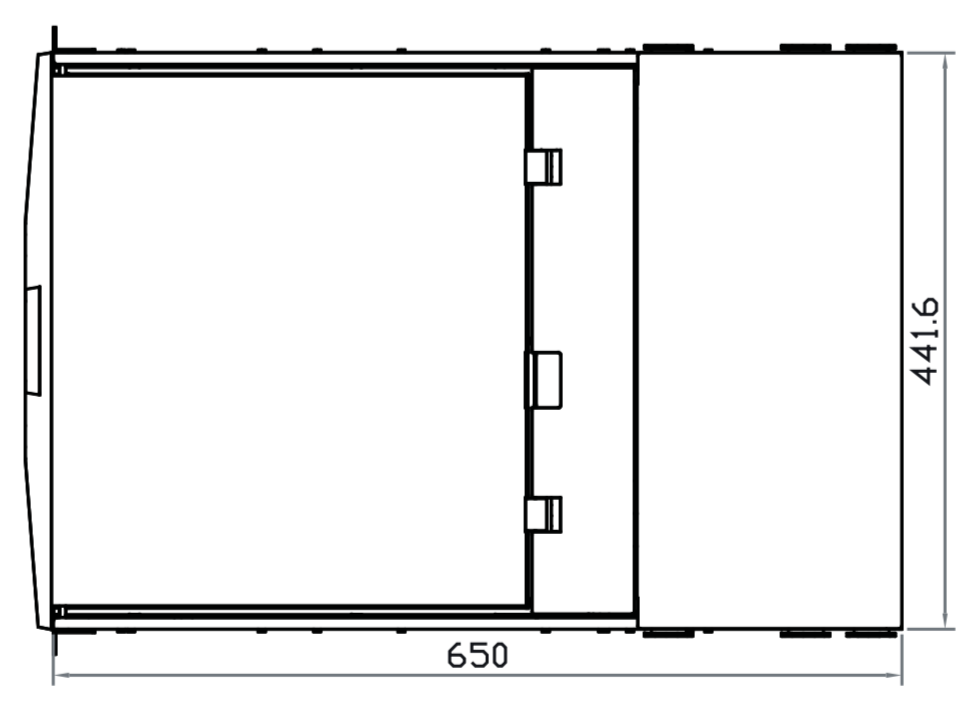

| Product (W x D x H) | 17.4 x 25.6 x 1.73″ (441.6 x 650 x 44 mm) |
| Packing (W x D x H) | 23.4 x 33.9 x 5.5″ (595 x 860 x 140 mm) |
| Net Weight | 29 lbs (13.2 kg) |
| Shipping Weight | 41.8 lbs (19 kg) |
| Mounting Depth | 21 to 38″ (533.4 to 965.2 mm) |
DIMENSIONS (with Integrated KVM)
| Product (W x D x H) | 17.4 x 25.6 x 1.73″ (441.6 x 650 x 44 mm) |
| Packing (W x D x H) | 23.4 x 33.9 x 5.5″ (595 x 860 x 140 mm) |
| Net Weight | 31.2 lbs (14.2 kg) |
| Shipping Weight | 44.9 lbs (20.4 kg) |
| Mounting Depth | 21 to 38″ (533.4 to 965.2 mm) |
POWER
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption | Screen On: Max. 25W Power Saving Mode: Max. 4W Power Button On: Max. 1W |
ENVIRONMENTAL
| Operating Temperature | 32° to 131°F (0° to 55°C) |
| Storage Temperature | -4° to 140°F (-20° to 60°C) |
| Operating Humidity | 20~90%, non-condensing |
| Storage Humidity | 5~90%, non-condensing |
| Operating Altitude | 16,000 ft (4,877 meters) |
| Non-Operating Altitude | 40,000 ft (12,192 meters) |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
LCD PANEL
| Diagonal Size | 19″ Fullscreen TFT |
| Max. Resolution | 1280 x 1024 |
| Brightness (cd/m2) | 250 |
| Backlight | LED |
| Colors | 16.7M |
| Contrast Ratio (typ) | 1000:1 |
| Viewing Angle (H/V) | 170° x 160° |
| Display Area (mm) | 376 x 301 |
| Response Time (ms) | 5 |
| MTBF (hrs) | 30,000 |
| Signal Input | VGA |
| Speaker (option) | 2 x Built-in Dual Stereo speakers 2W |
Supporting Docs
Features & Benefits
- 19” LCD monitor (1280 x 1024).
- 1U independent, Dual Slide for keyboards and monitor.
- 170 degree viewing angle.
- 104-key keyboard with number pad and numerous language layouts.
- Available with touchpad options.
- Stowable keyboard for added security.
- Combo interface either PS/2 or USB for single console drawer.
- Multiple video format support.
- Quick, plug-&-play installation.
Keyboard Options
WE'VE GOT YOU COVERED
We are so confident in our products, your purchase is covered by an industry-leading 2 year warranty, extendable up to 5 years.
Share your thoughts
We’re happy when you’re happy, simple as that. We want to listen to how we may improve our site for you.
Recommendations
KVM Switch
Cables
Cables
Coming Soon! Thank you for your patience. See All Cables.

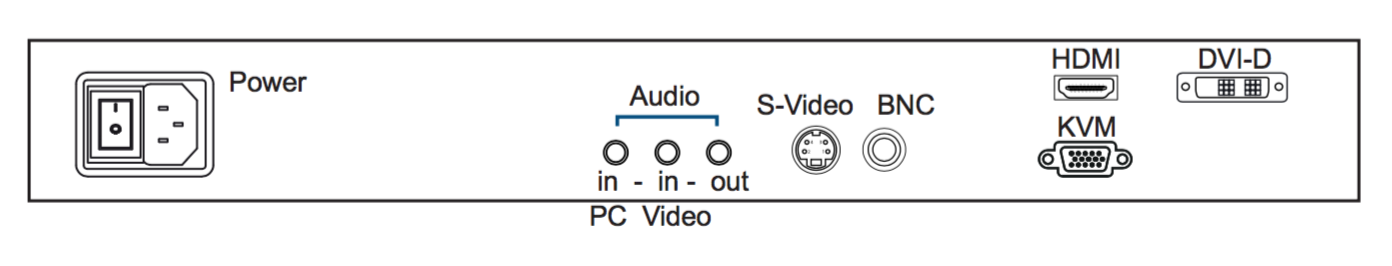

Upgrades
For broadcast-grade video and high resolution CCTV market:
- 3G / HD / SD-SDI input
- HDMI / AV / Audio
For optimized Telco or Data Center power environments:

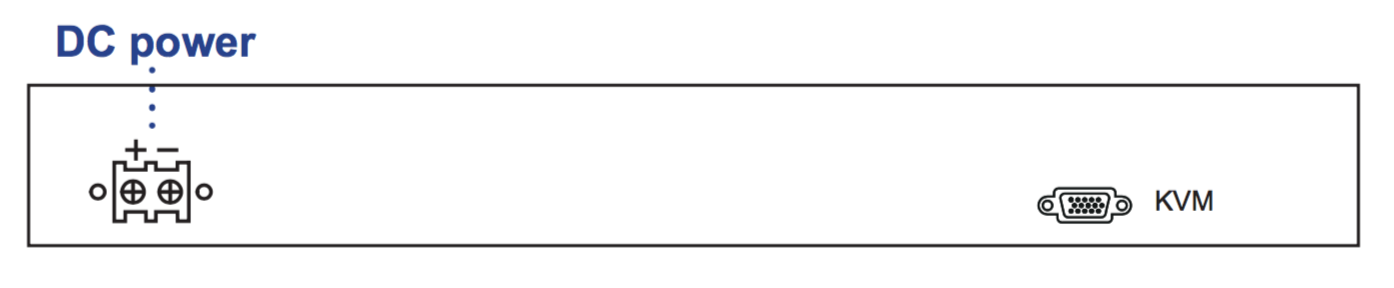

- DC Power
- Full Range KVM
Integrate it.
Dependable, integrated KVM switches for quick, efficient
at-the rack access of your critical servers.
Why Integrate?
Optimize your rack space by integrating a KVM Switch into your Console Drawer, providing easy installation & streamlined access to your servers in only 1U.
✓ Innovative Design
Traditional cabled and high density designs to meet the unique requirements of each rack environment.
✓ Plug-&-Play Connectivity
Simple to install, configure, and operate for less down-time and greater productivity.
✓ Fully Customizable
Multiple port numbers and simultaneous user configurations to fulfill any access requirements.
DB-15
CATx
DVI-D
USB Hub
DB-15
| Simultaneous Users | Local Console | Remote Console | IP Console | 8 Port | 16 Port | 32 Port |
|---|---|---|---|---|---|---|
| 1 | 1 | 0 | 0 | RD119-KVM10008e | RD119-KVM10016e | - - |
| 1 | 1 | 0 | 1 | RD119-KVM10108e | RD119-KVM10116e | - - |
| 1 | 1 | 1 | 0 | RD119-KVM11008e | RD119-KVM11016e | - - |
| 2 | 1 | 1 | 0 | - - | RD119-KVM21016e | - - |
| 3 | 1 | 1 | 1 | - - | RD119-KVM31116e | - - |
| 3 | 1 | 2 | 0 | - - | RD119-KVM32016e | - - |
| 4 | 1 | 2 | 1 | - - | RD119-KVM42116e | - - |
| 4 | 1 | 1 | 2 | - - | RD119-KVM41216e | - - |
| 4 | 1 | 3 | 0 | - - | RD119-KVM43016e | - - |

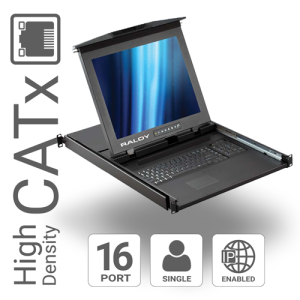

CATx
| Simultaneous Users | Local Console | Remote Console | IP Console | 8 Port | 16 Port | 32 Port |
|---|---|---|---|---|---|---|
| 1 | 1 | 0 | 0 | RD119-CATx10008e | RD119-CATx10016e | RD119-CATx10032e |
| 1 | 1 | 0 | 1 | RD119-CATx10108e | RD119-CATx10116e | RD119-CATx10132e |
| 2 | 1 | 1 | 0 | RD119-CATx21016e | RD119-CATx21032e | |
| 3 | 1 | 1 | 1 | RD119-CATx31116e | RD119-CATx31132e | |
| 3 | 1 | 2 | 0 | RD119-CATx32016e | RD119-CATx32032e | |
| 4 | 1 | 2 | 1 | RD119-CATx42116e | RD119-CATx42132e | |
| 4 | 1 | 1 | 2 | RD119-CATx41216e | RD119-CATx41232e | |
| 4 | 1 | 3 | 0 | RD119-CATx43016e | RD119-CATx43032e |
DVI-D
| Simultaneous Users | Local Console | Remote Console | IP Console | 12 Port |
|---|---|---|---|---|
| 1 | 1 | 0 | 0 | RD119-DVIKVM112e |
USB Hub
| Simultaneous Users | Local Console | Remote Console | IP Console | 8 Port | 16 Port |
|---|---|---|---|---|---|
| 1 | 1 | 0 | 0 | RD119-HKVM10008e | RD119-HKVM10016e |
| 1 | 1 | 0 | 1 | RD119-HKVM10108e | RD119-HKVM10116e |
* Replace with either an e for the touchpad or b for the trackball.
